Nebula Midi

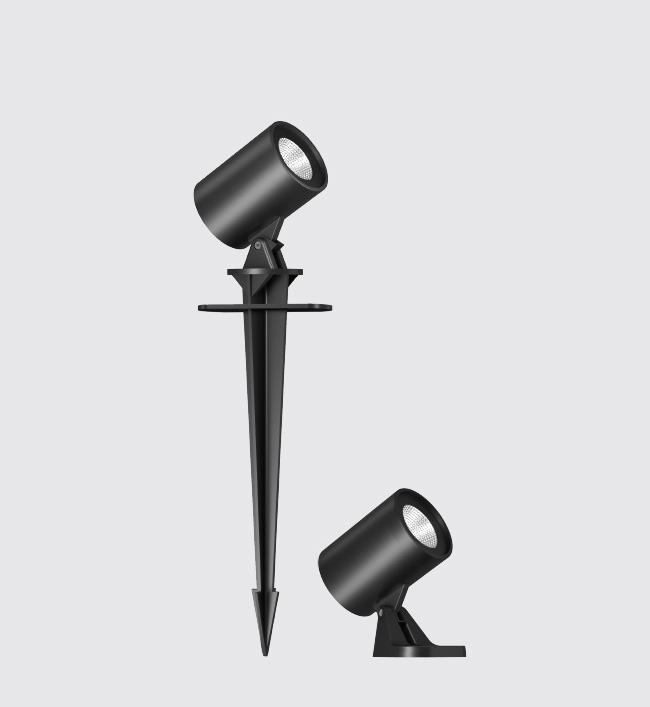

LED compact spot light luminaires designed to provide directional light.The luminaires comes with a connecting cable and an earth spike for portable installation or bracket for permanent installation on a wall,under a ceiling or on a column

Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear toughened glass.
• Mounting earth spike or die-cast aluminium bracket arrangement to facilitate easy installation at any desired location.
• Swivel range of 0°-90°.
• Luminaire supplied with 0.5 metre cable length and a IP67 connector.
• Silicone gasket.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >90
• Prewired with LED driver and suitable for operating on 240V,50Hz singlephase ac supply.
• Ordering guide : KL-4268-CCT (Colour Temperature)
• Available CCT : 2700K/3000K/4000K/6500K

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Clear glass in the front with continuous rubber gasket to ensure adequate sealing against ingress of moisture,dust,insects etc.,
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

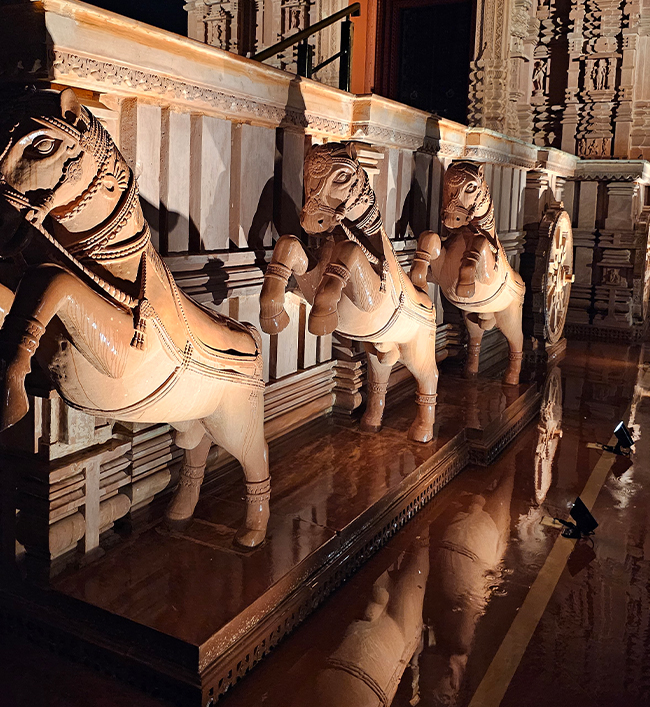

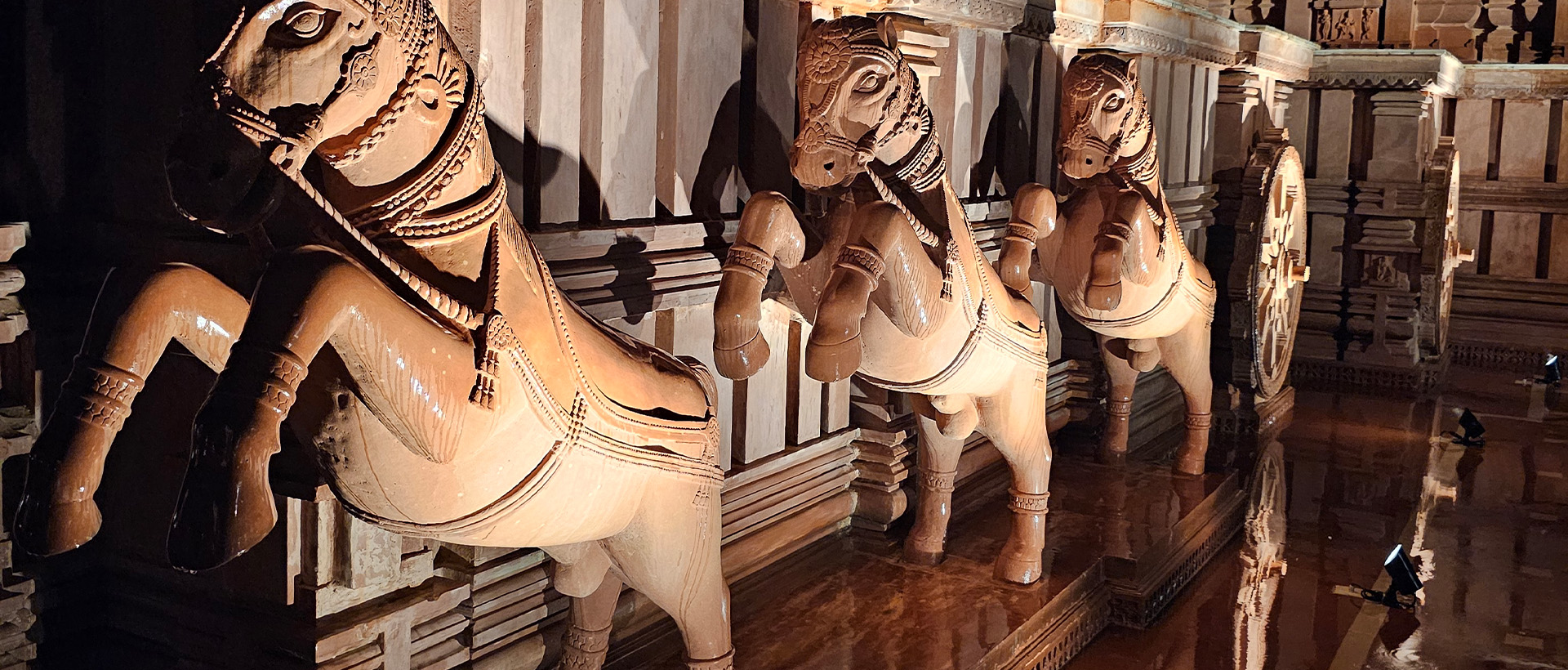

Pathways,Parks,Sculptures,Gardens,Structures and Landscape lighting.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-8275Tree Strap Accessory1000mm8275.pdf
KL-8308Anti-Glare Visor AccessoryØ76 x 76mm8308.pdf
KL-8334Honey Comb Louvre AccessoryØ49 x 2mm8334.pdf
KL-8309Spill Control Snoot AccessoryØ76 x 100mm8309.pdf
KL-8343Tree Strap Clamp Accessory60 x 30 x 10mm8343.pdf

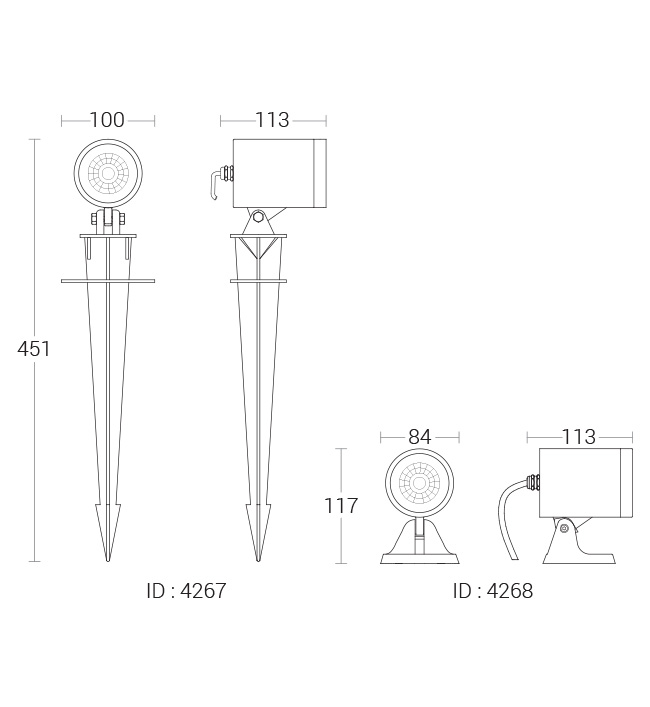

KL-426812W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened Glass113 x 84 x 117mmKL-4268-BA15°-WW.IES
KL-4268-BA15°-NW.IES
KL-4268-BA25°-WW.IES
KL-4268-BA25°-NW.IES
KL-4268-BA40°-WW.IES
KL-4268-BA40°-NW.IES
KL-4268-BA25D-2700K.IES
KL-4268-BA25D-3000K.IES
KL-4268-BA25D-4000K.IES
KL-4268-BA25D-6500K.IES
KL-4268-BA15D-2700K.IES
KL-4268-BA15D-3000K.IES
KL-4268-BA15D-4000K.IES
KL-4268-BA15D-6500K.IES
KL-4268-BA40D-2700K.IES
KL-4268-BA40D-3000K.IES
KL-4268-BA40D-4000K.IES
KL-4268-BA40D-6500K.IES
KL-4268-BA15°-WW.PDF
KL-4268-BA15°-NW.PDF
KL-4268-BA25°-WW.PDF
KL-4268-BA25°-NW.PDF
KL-4268-BA40°-WW.PDF
KL-4268-BA40°-NW.PDF
KL-4268-BA25D-2700K.PDF
KL-4268-BA25D-3000K.PDF
KL-4268-BA25D-4000K.PDF
KL-4268-BA25D-6500K.PDF
KL-4268-BA15D-2700K.PDF
KL-4268-BA15D-3000K.PDF
KL-4268-BA15D-4000K.PDF
KL-4268-BA15D-6500K.PDF
KL-4268-BA40D-2700K.PDF
KL-4268-BA40D-3000K.PDF
KL-4268-BA40D-4000K.PDF
KL-4268-BA40D-6500K.PDF
4268.pdf
KL-4268.txt
KL-426712W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened Glass113 x 100 x 451mmKL-4267-BA15°-WW.IES
KL-4267-BA15°-NW.IES
KL-4267-BA25°-WW.IES
KL-4267-BA25°-NW.IES
KL-4267-BA40°-WW.IES
KL-4267-BA40°-NW.IES
KL-4267-BA15°-WW.PDF
KL-4267-BA15°-NW.PDF
KL-4267-BA25°-WW.PDF
KL-4267-BA25°-NW.PDF
KL-4267-BA40°-WW.PDF
KL-4267-BA40°-NW.PDF
4267.pdf
KL-4267.txt
