Nebula Micro

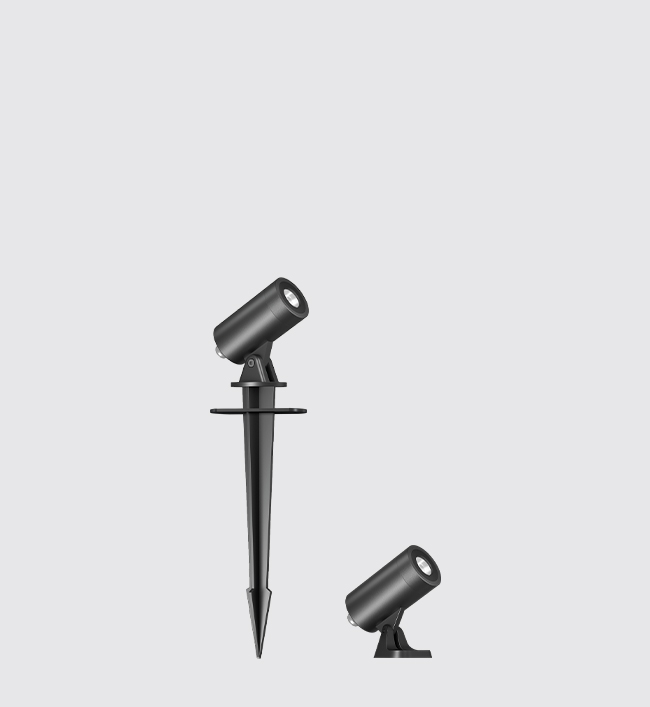

LED compact spot light luminaires designed to provide directional light.The luminaires comes with a connecting cable and an earth spike for portable installation or bracket for permanent installation on a wall, under a ceiling or on a column.

Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear toughened glass.
• Mounting earth spike or die-cast aluminium bracket arrangement to facilitate easy installation at any desired location.
• Swivel range of 0°-90°.
• Luminaire supplied with 0.5 metre cable length and a IP67 connector.
• Silicone gasket.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : =80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4264-CCT (Colour Temperature)
• Available CCT : 2700K / 3000K / 4000K / 5700K

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Clear glass in the front with continuous rubber gasket to ensure adequate sealing against ingress of moisture, dust, insects etc.,
• Sustainable LED technology offers durability and optimal light output with low power consumption.

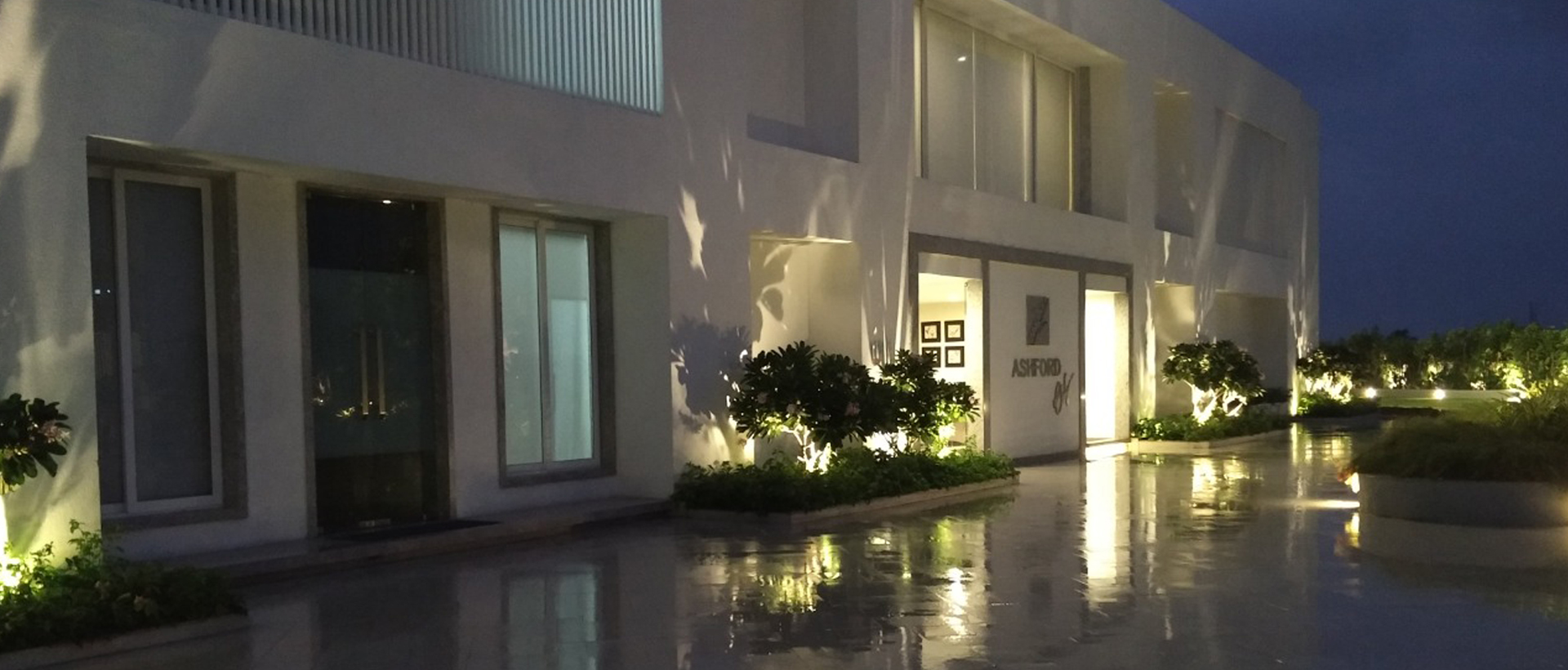

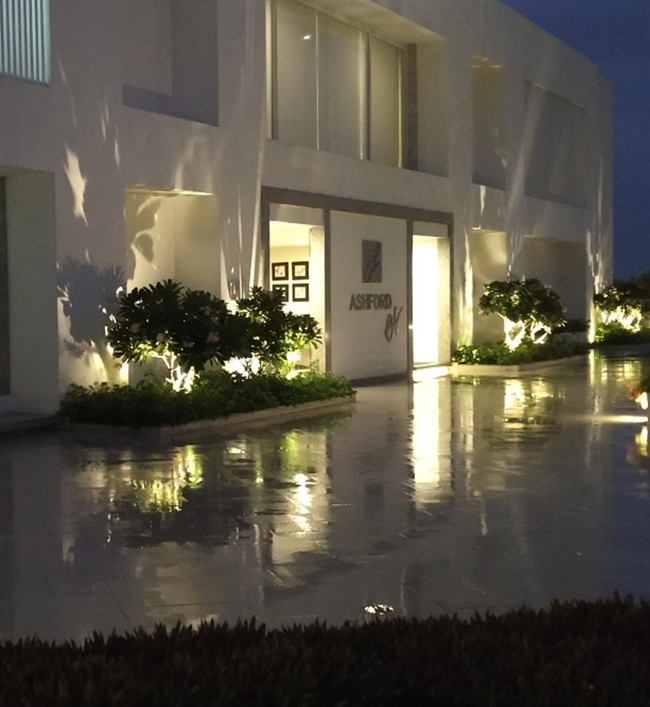

Area of Application
Pathways,Parks,Sculptures,Gardens,Structures and Landscape lighting.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-8275Tree Strap Accessory1000mm8275.pdf
KL-8295Anti-Glare Visor AccessoryØ45 x 58mm8295.pdf
KL-8296Spill Control Snoot AccessoryØ45 x 75mm8296.pdf
KL-8333Honey Comb louvre AccessoryØ32 x 2mm8333.pdf
KL-8343Tree Strap Clamp Accessory60 x 30 x 10mm8343.pdf

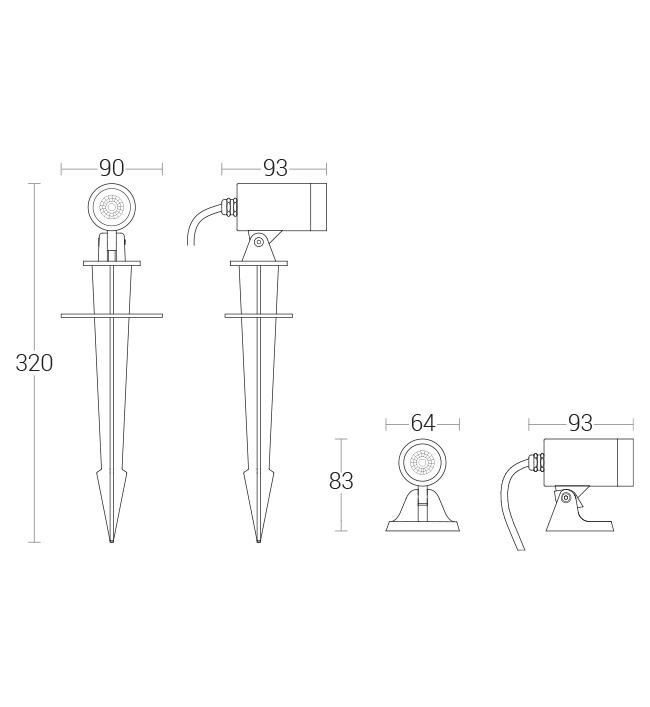

KL-42643W LED 2700K,3000K,4000K,5700K BA:24°,8°,12°,40°,60°,40°x11°, Clear Toughened Glass93 x 64 x 83mmKL-4264-BA12°-WW.IES
KL-4264-BA12°-NW.IES
KL-4264-BA24°-WW.IES
KL-4264-BA24°-NW.IES
KL-4264-BA8°-NW.IES
KL-4264-BA8°-WW.IES
KL-4264-BA40°-WW.IES
KL-4264-BA40°-NW .IES
KL-4264-BA60°-WW.IES
KL-4264-BA40°x11°-WW.IES
KL-4264-BA40°x11°-NW .IES
KL-4264-BA24D-2700K.IES
KL-4264-BA24D-3000K.IES
KL-4264-BA24D-4000K.IES
KL-4264-BA24D-5700K.IES
KL-4264-BA8D-5700K.IES
KL-4264-BA8D-4000K.IES
KL-4264-BA8D-3000K.IES
KL-4264-BA8D-2700K.IES
KL-4264-BA12D-2700K.IES
KL-4264-BA12D-3000K.IES
KL-4264-BA12D-4000K.IES
KL-4264-BA12D-5700K.IES
KL-4264-BA40D-5700K.IES
KL-4264-BA40D-4000K.IES
KL-4264-BA40D-3000K.IES
KL-4264-BA40D-2700K.IES
KL-4264-BA60D-2700K.IES
KL-4264-BA60D-3000K.IES
KL-4264-BA60D-4000K.IES
KL-4264-BA60D-5700K.IES
KL-4264-BA40x11D-5700K.IES
KL-4264-BA40x11D-4000K.IES
KL-4264-BA40x11D-3000K.IES
KL-4264-BA40x11D-3000K.IES
KL-4264-BA40x11D-2700K.IES
KL-4264-BA12°-WW.PDF
KL-4264-BA12°-NW.PDF
KL-4264-BA24°-WW.PDF
KL-4264-BA24°-NW.PDF
KL-4264-BA8°-NW.PDF
KL-4264-BA8°-WW.PDF
KL-4264-BA40°-WW.PDF
KL-4264-BA40°-NW .PDF
KL-4264-BA60°-WW.PDF
KL-4264-BA40°x11°-WW.PDF
KL-4264-BA40°x11°-NW .PDF
KL-4264-BA24D-2700K.PDF
KL-4264-BA24D-3000K.PDF
KL-4264-BA24D-4000K.PDF
KL-4264-BA24D-5700K.PDF
KL-4264-BA8D-5700K.PDF
KL-4264-BA8D-4000K.PDF
KL-4264-BA8D-3000K.PDF
KL-4264-BA8D-2700K.PDF
KL-4264-BA12D-2700K.PDF
KL-4264-BA12D-3000K.PDF
KL-4264-BA12D-4000K.PDF
KL-4264-BA12D-5700K.PDF
KL-4264-BA40D-5700K.PDF
KL-4264-BA40D-4000K.PDF
KL-4264-BA40D-3000K.PDF
KL-4264-BA40D-2700K.PDF
KL-4264-BA60D-2700K.PDF
KL-4264-BA60D-3000K.PDF
KL-4264-BA60D-4000K.PDF
KL-4264-BA60D-5700K.PDF
KL-4264-BA40x11D-5700K.PDF
KL-4264-BA40x11D-4000K.PDF
KL-4264-BA40x11D-3000K.PDF
KL-4264-BA40x11D-3000K.PDF
KL-4264-BA40x11D-2700K.PDF
4264.pdf
KL-4264.txt
KL-42633W LED 2700K,3000K,4000K,5700K BA:24°,8°,12°,40°,60°,40°x11°, Clear Toughened Glass93 x 90 x 320mmKL-4263-BA12°-WW.IES
KL-4263-BA12°-NW.IES
KL-4263-BA24°-WW.IES
KL-4263-BA24°-NW.IES
KL-4263-BA40°-WW.IES
KL-4263-BA12°-WW.PDF
KL-4263-BA12°-NW.PDF
KL-4263-BA24°-WW.PDF
KL-4263-BA24°-NW.PDF
KL-4263-BA40°-WW.PDF
4263.pdf
KL-4263.txt
