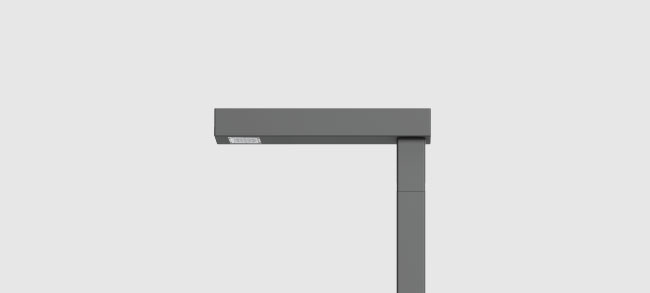

Polar / Dual Polar - Vertical Mounting
Innovative Design options to provide Visual integration with the environment. High Brightness, LED Light source do not pose any environment risks.
Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World.Long life span with very low maintenance.

Product Description
• Luminaire body made of extruded aluminium (grade 6063) and non corrosive SS fasteners.
• Polycarbonate optical lens.

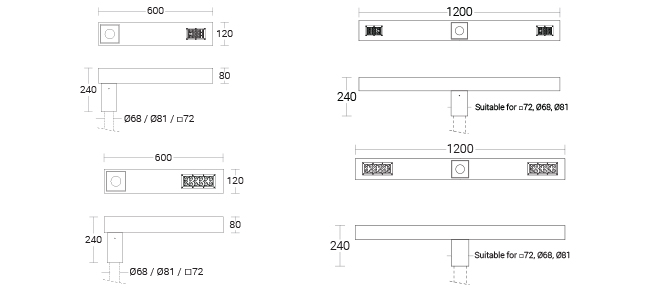

• Suitable for mounting on 76mm OD Pipe / 88.9mm OD Pipe / 72mm Square Pipe / 91mm Square Pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Suitable for operation on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4417-CCT (Colour Temperature)
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile,strong and stable with sound engineering.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

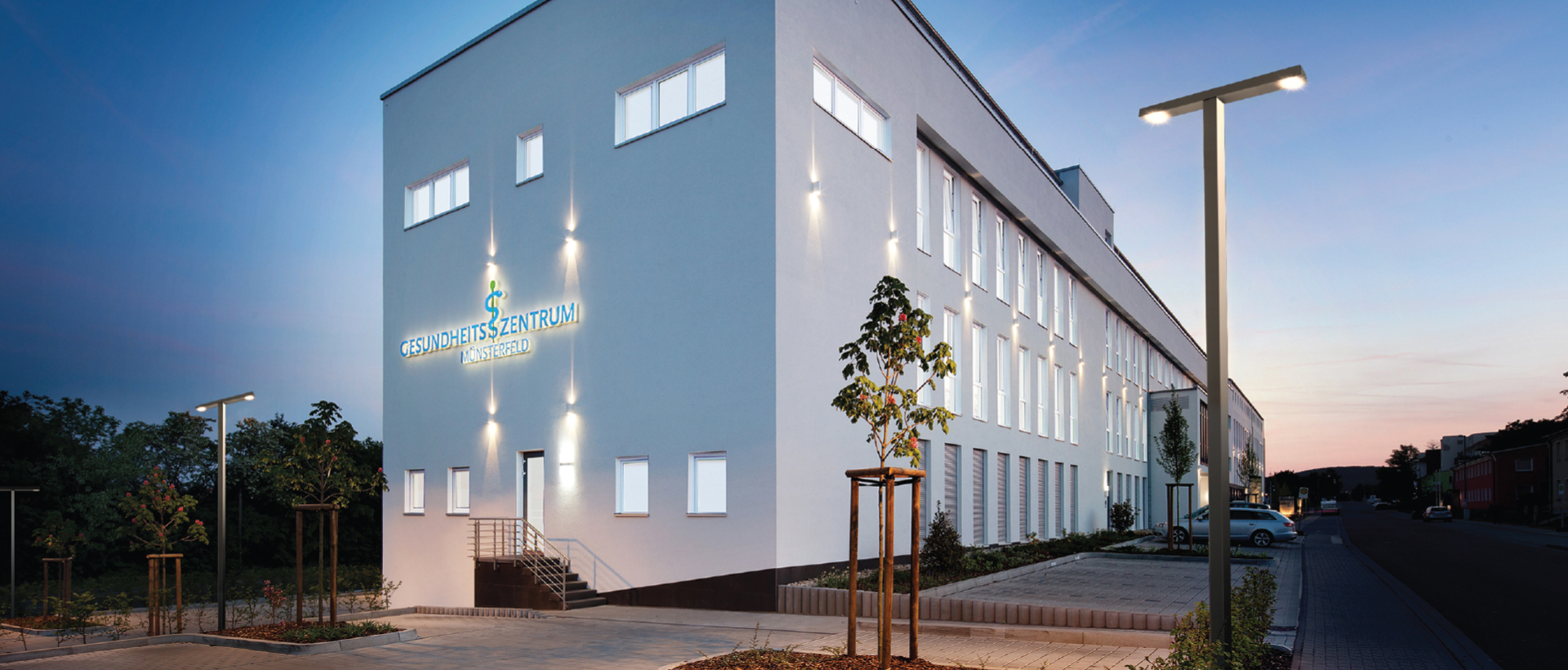

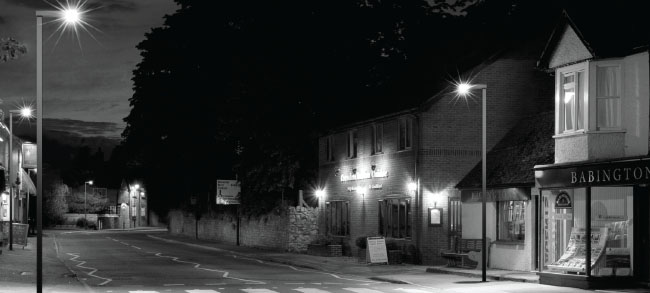

Commercial complex,Smallar Roadways,Private driveways,Residential area lighting,Courtyards,Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-441960W LED 3000K,4000K,5700K BA:Type II, Polycarbonate Optical Lens1200 x 120 x 240mmD3
D26
D15
D16
4419.pdf
KL-4420100W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens1200 x 120 x 240mmD3
D26
D15
D16
4420.pdf
KL-441730W LED 3000K,4000K,5700K BA:Type II, Polycarbonate Optical Lens600 x 120 x 240mmD3
D26
D15
D16
KL-4417-BATYPEII-WW.IES
KL-4417-BATYPEII-CW.IES
KL-4417-BATYPEII-NW.IES
KL-4417-BATYPEII-WW.PDF
KL-4417-BATYPEII-CW.PDF
KL-4417-BATYPEII-NW.PDF
4417.pdf
KL-441850W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens600 x 120 x 240mmD3
D26
D15
D16
KL-4418-BATYPEIII-WW.IES
KL-4418-BATYPEIII-CW.IES
KL-4418-BATYPEIII-NW.IES
KL-4418-BATYPEIII-WW.PDF
KL-4418-BATYPEIII-CW.PDF
KL-4418-BATYPEIII-NW.PDF
4418.pdf
