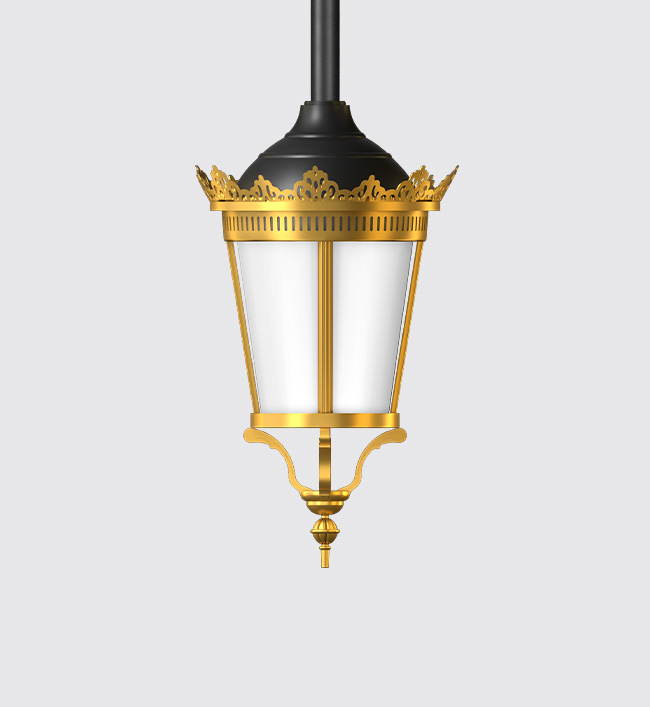

Magudam Midi
“Magudam Midi” pathway luminaire,is an innovative design options to provide visual integration with the environment.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered symmetrical light distribution.

Product Description
• The luminaire comprises of specially contoured spun aluminium top cover with die cast aluminium components.
• Pressure diecast aluminium magudam attachment added for aesthetics.
• Non-yellowing UV stabilised translucent acrylic diffuser.
• Luminaire integrated with 30W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4608-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Functionality.
• Environmental Friendly.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

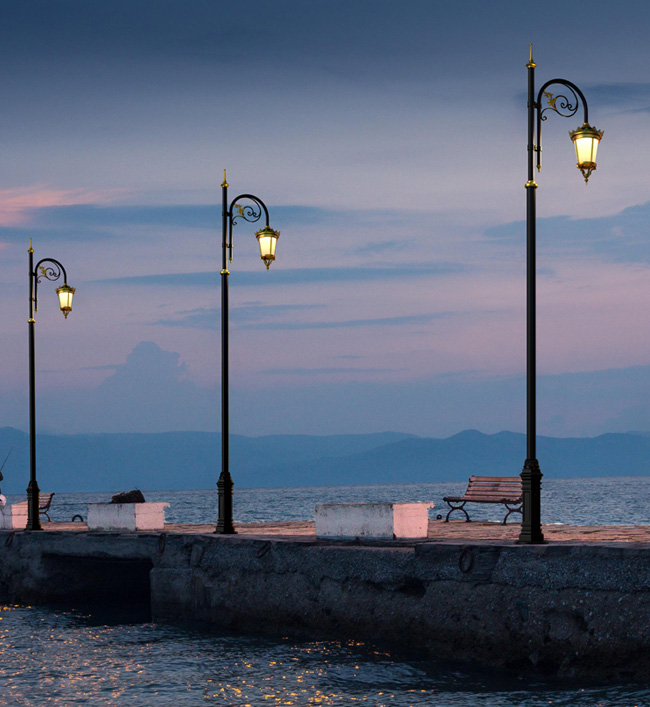

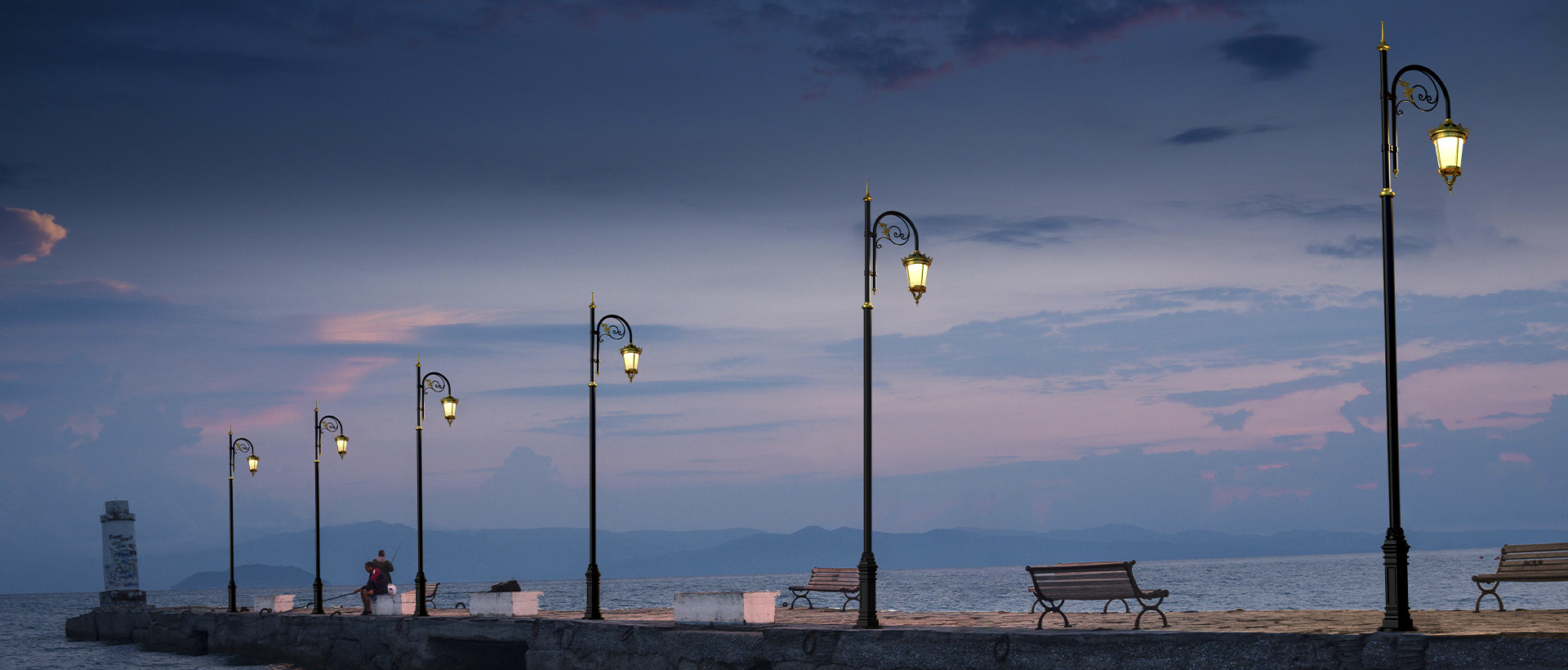

Illuminating parks,Gardens,commercial complex,Pathways in residential buildings,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey & Gold
• Anthracite grey & Gold
• Jet black & Gold.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

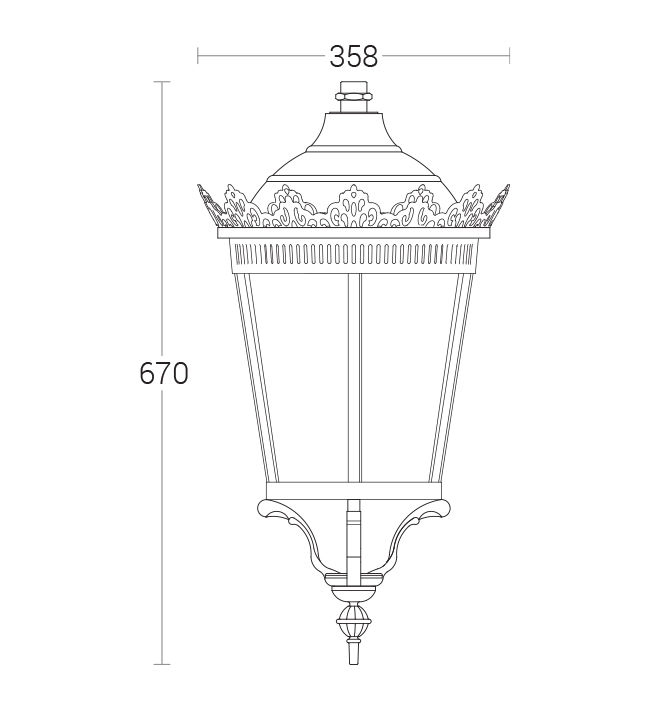

KL-4607E27 Holder, Translucent AcrylicØ358 x 670mmD4
4607.pdf
KL-460830W LED 2700K,3000K,4000K,5700K, Translucent AcrylicØ358 x 670mmD4
4608.pdf
