Gadai
An elegant and efficient lantern with prismatic diffuser provide a unique,comfortable light choice with symmetrical and glare free light distribution.Designed for highest efficiency in terms of more lumens at reduced wattages.
Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.

Product Description

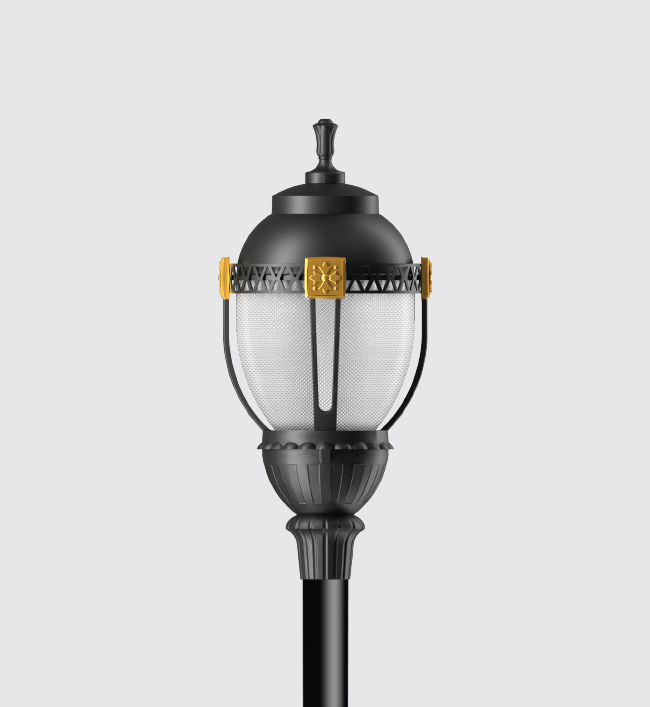

• The luminaire comprises of specially contoured spun aluminium top cover,aluminium decorative knob on top with ornamental supporting arms.
• Prismatic polycarbonate diffuser.
• EPDM Gasket.
• Luminaire integrated with 50W LED.
• Decorative die-cast aluminium base.
• Suitable for mounting on 76mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4998-CCT (Colour Temperature)
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• Elegance,Functionality.
• Environmental friendly.
• Moisture proof,insect free.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

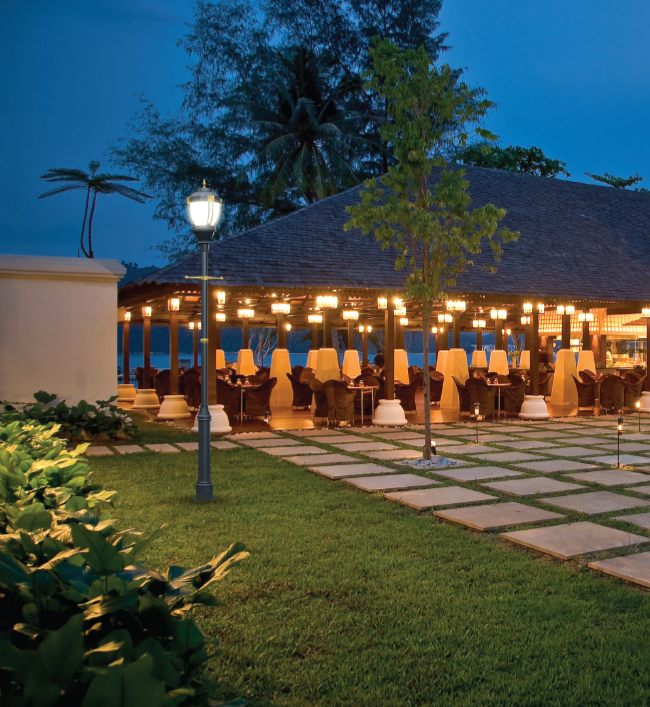

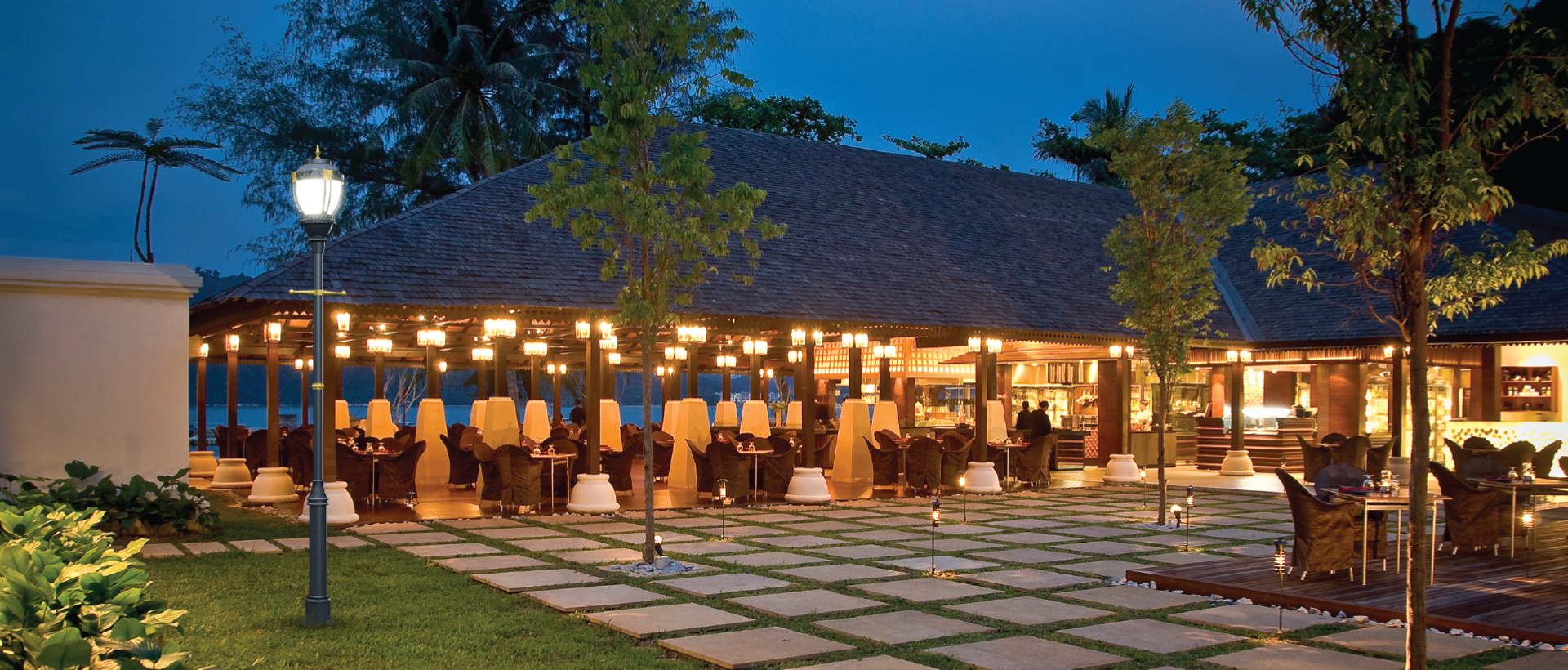

Illuminating parks,Gardens,Commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

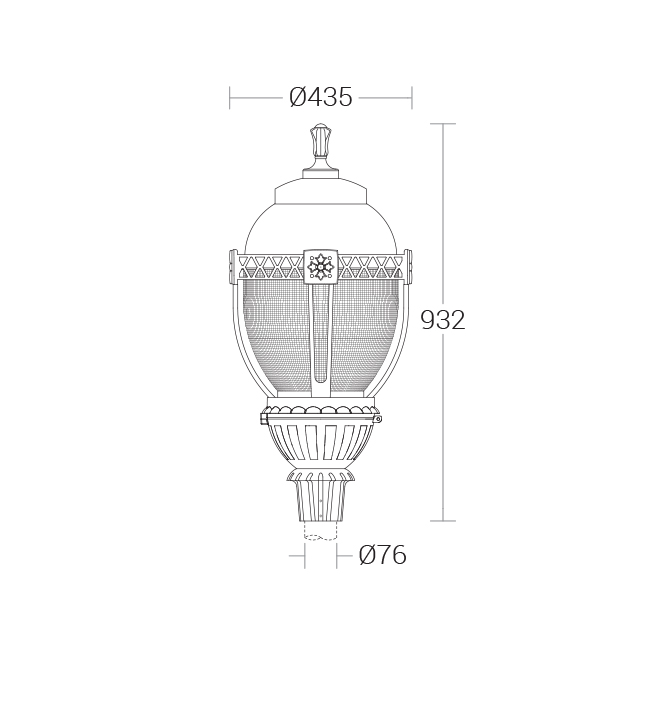

KL-4918E27 Holder (Max. 30W LED / 45W CFLE), PrismaticØ435 x 932mmD3
KL-499850W LED 2700K,3000K,4000K,5700K, Prismatic PolycarbonateØ435 x 932mmD3
KL-4998-BA--3000K.IES
KL-4998-BA--3000K.PDF
4998.pdf
KL-4998.txt
