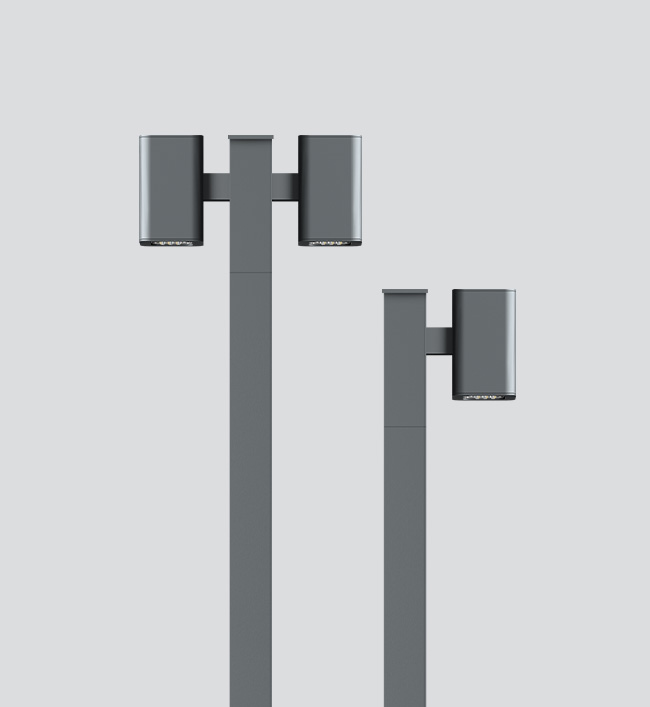

“Cubus / Dual Cubus” pathway luminaire, is an innovative design options to provide visual integration with the environment. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Product offered asymmetrical light distribution.
Product Description• Luminaire made of extruded aluminium square tube (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Silicone gasket.

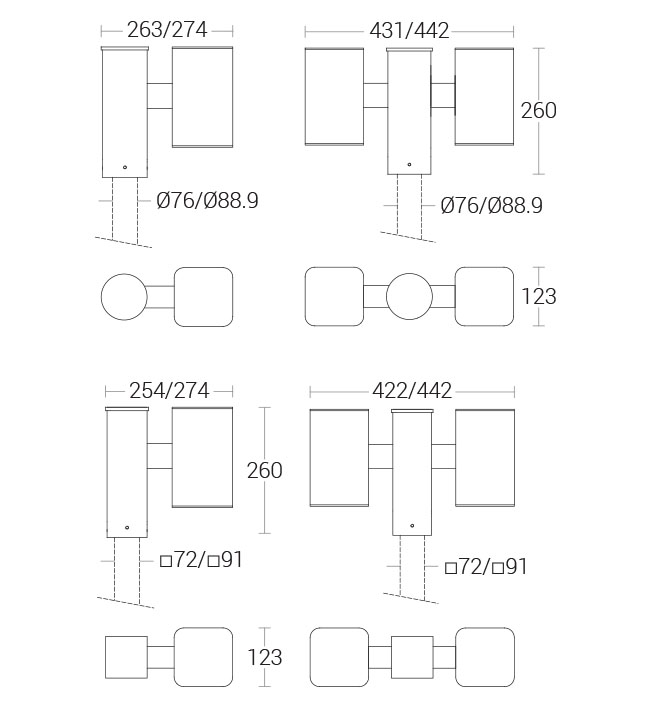

• Suitable for mounting on 76mm / 88.9mm OD pipe, 72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >70
• Prewired with LED driver and suitable for operation on 240V, 50Hz, single phase ac supply.
• Ordering guide : KL-4436-CCT (Colour Temperature).
• Available CCT : 2700K, 4000K, 5700K.
Product Benefits• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

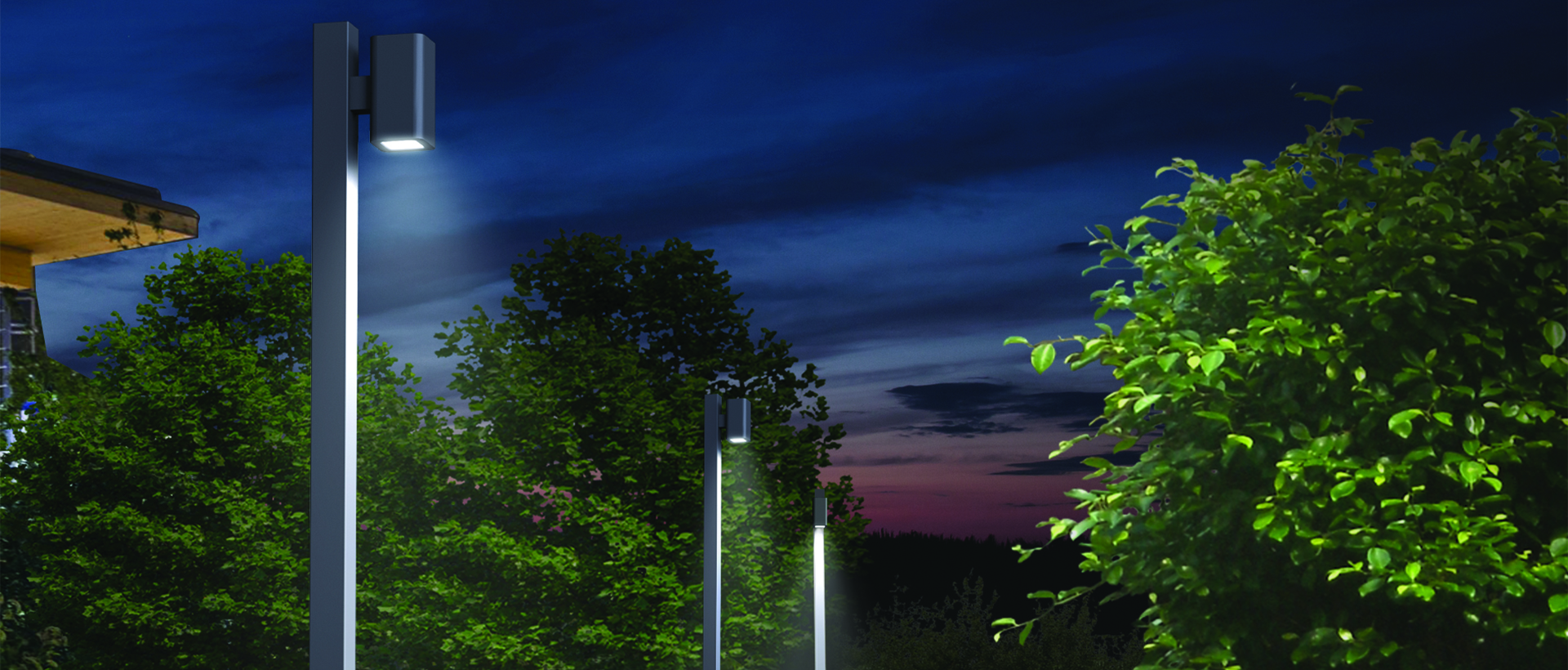

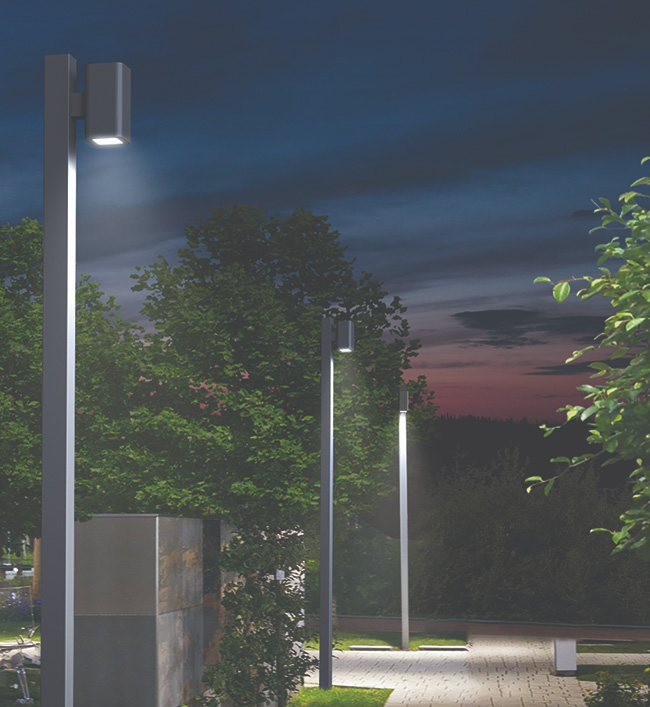

Area of ApplicationIlluminating parks, Gardens, Private driveways, Commercial complex, Pathways in Residential buildings & office complex.
Available FinishPure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
