Tagalog
An elegant and efficient lantern with translucent diffuser provide a unique,comfortable light choice with glare free light distribution.Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• The luminaire totally weather proof with housing made of die cast aluminium.
• Diffuser placed into the provision formed on the periphery of the bottom cover.
• Non yellowing UV stabilized translucent polycarbonate diffuser.
• Luminaire integrated with 50W LED.
• Suitable for mounting on 76mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-5368-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Environmental friendly,moisture proof,insect free.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

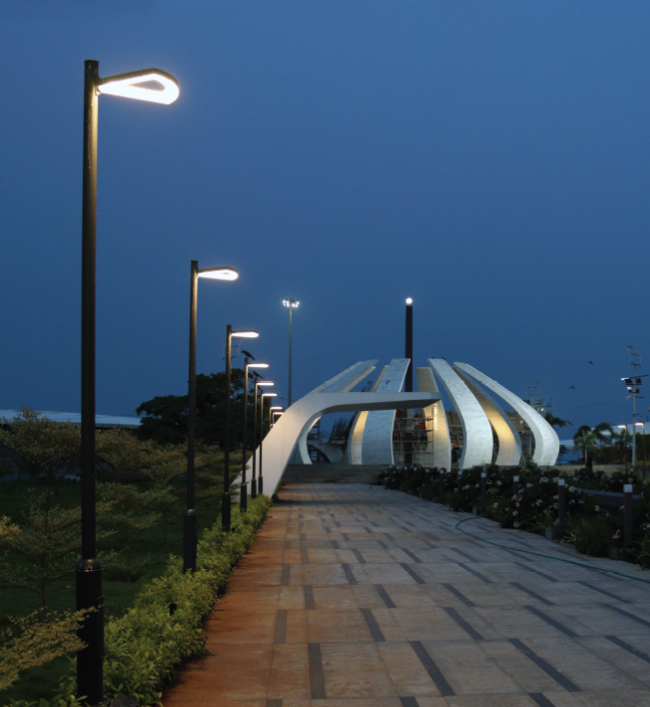

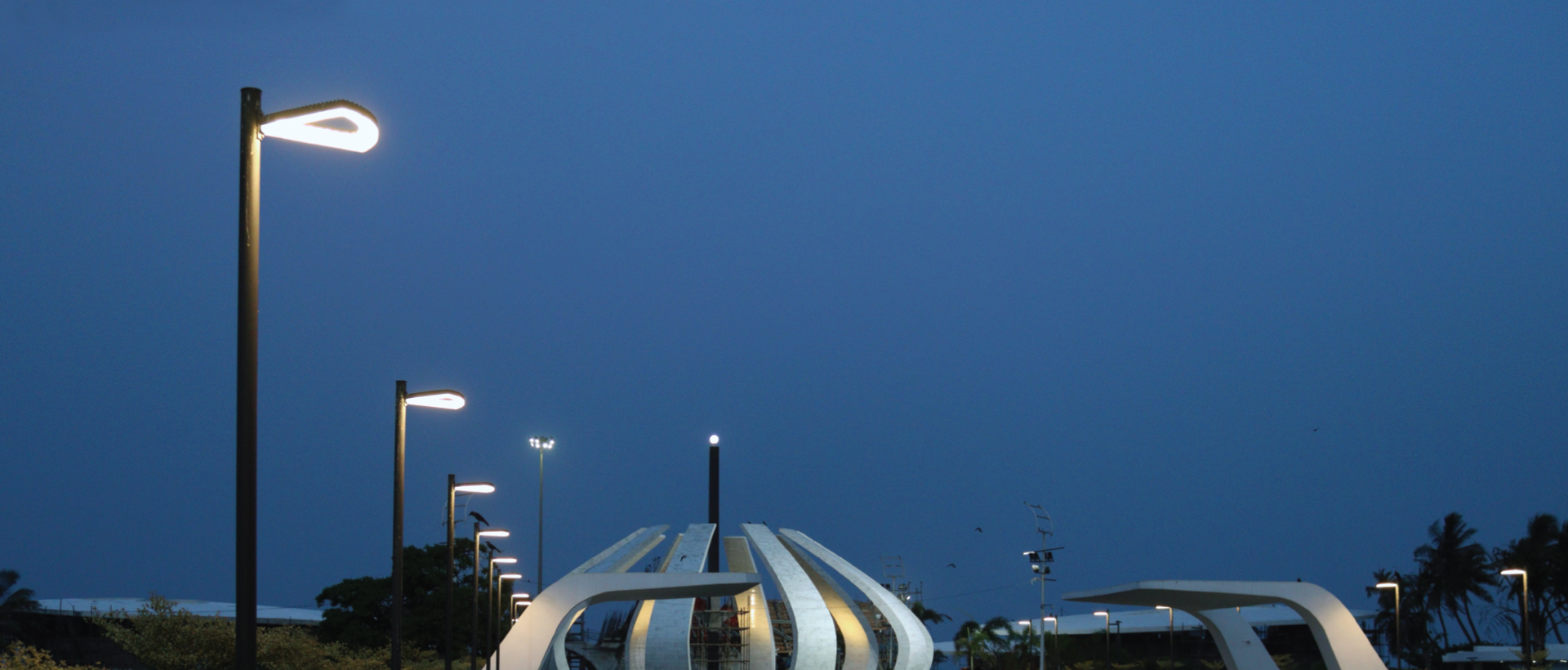

Illuminating parks,Gardens,commercial complex,Pathways in residential buildings & office complex.

Available Finish
Pure polyester powder coated grey.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

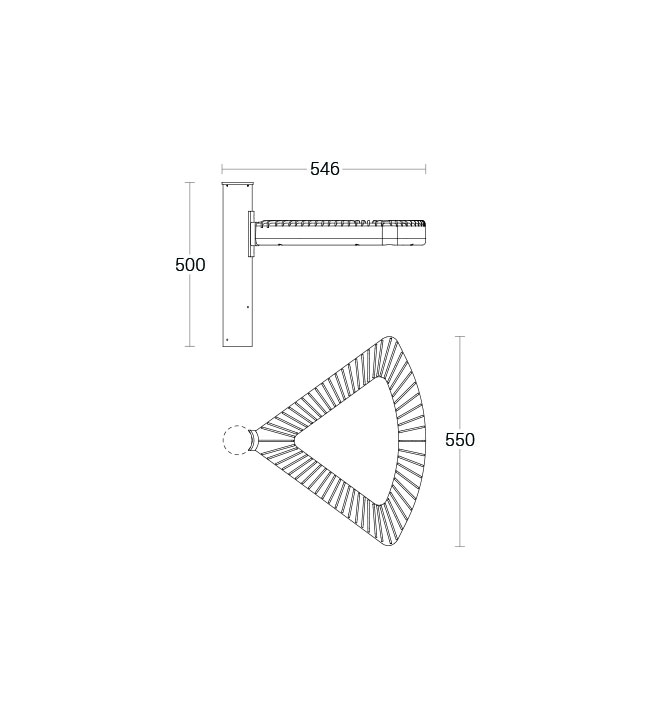

KL-536850W LED WW,NW,CW BA:120°, Translucent Polycarbonate546 x 550 x 300mmD3
KL-5368.IESKL-5368.PDF5368.pdf
