Line n Dot Series
Minimalistic, yet impressive

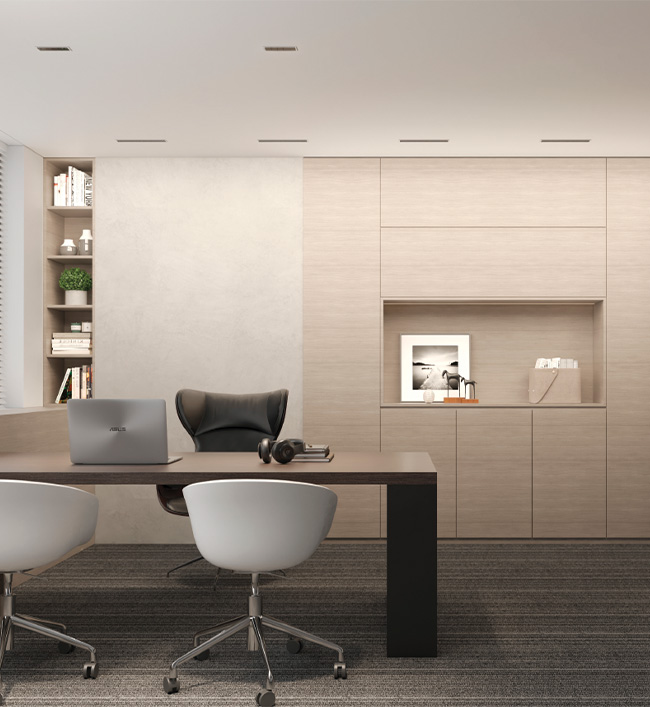

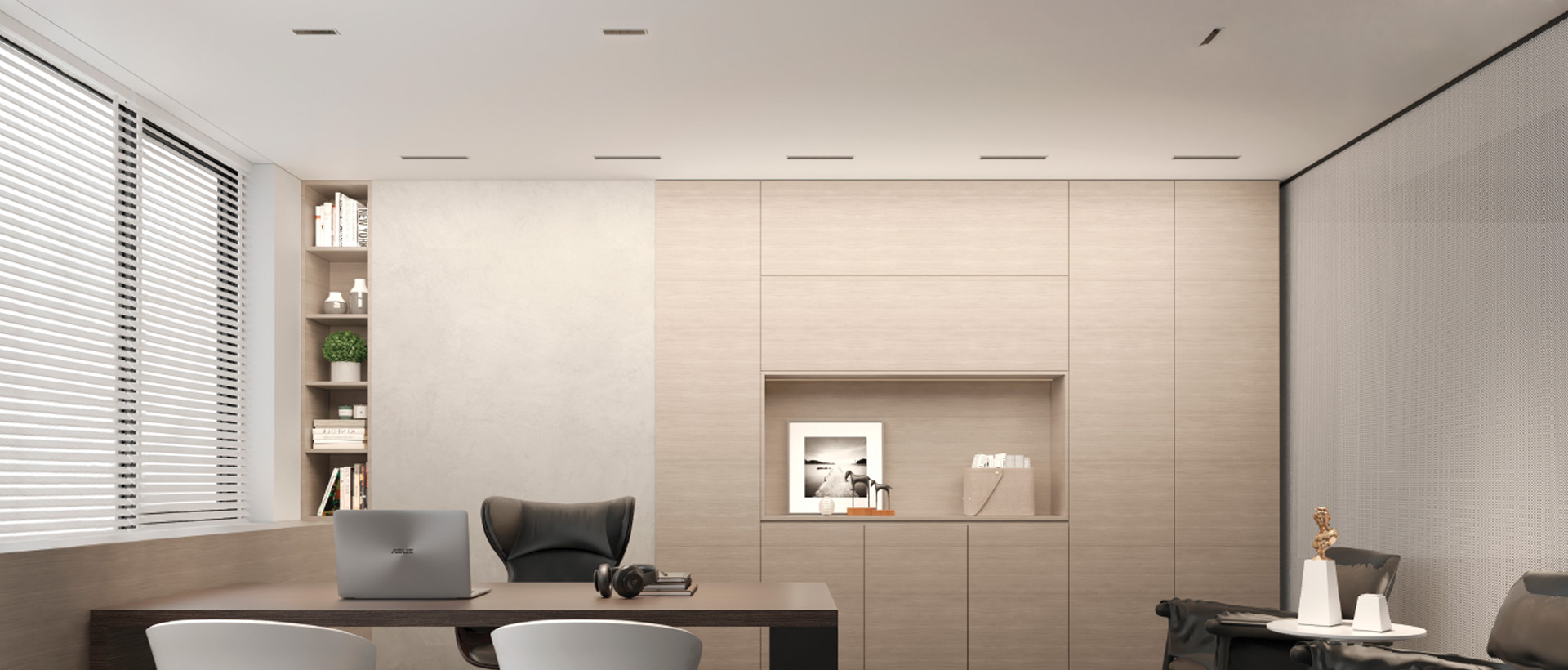

Line ’n’ dot offers new application opportunities for a modern and sophisticated look for any type of interior applications, including commercial spaces, Private sector, Hospitality, Museums and other similar areas.

It gives a minimalistic and elegant touch to ceilings keeping a clean look. Specially developed and designed optical lenses deliver optimal wide (general) or narrow (concentrated) light distribution to adapt the lighting to specific needs with UGR<12.

Linear downlight
Enhance contrast for horizontal surfaces
High-purified die-cast housing, integrated with innovative vaccum aluminium plated chrome finish antiglare
UGR<12.

Linear Wallwasher

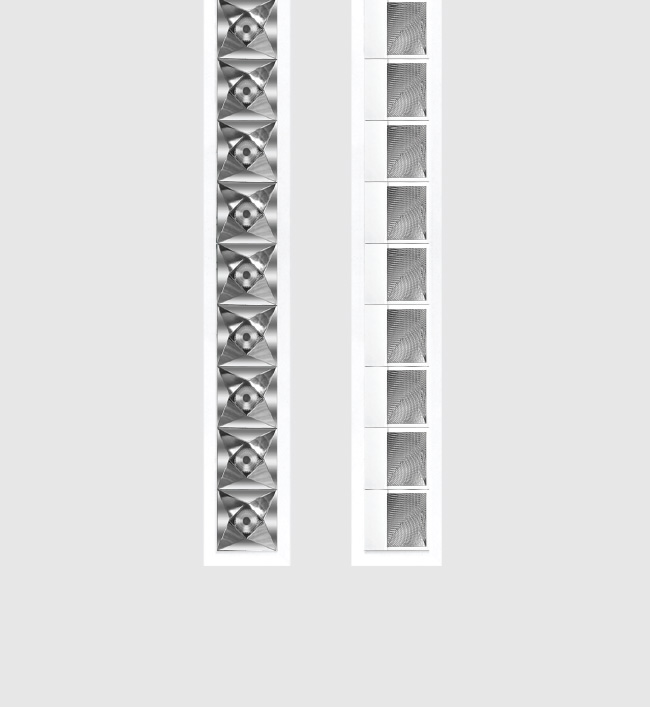

Linear Wallwasher equipped with a specially developed asymmetric lens for excellent uniform wallwashing distribution.

Linear Down light
Modular recessed downlight with UGR<12. Available in one, three, four, five, nine & ten dots. Line’n’Dot provides the best light output for indoor spaces that require a high visual comfort.

Downloads
Catalogue Page

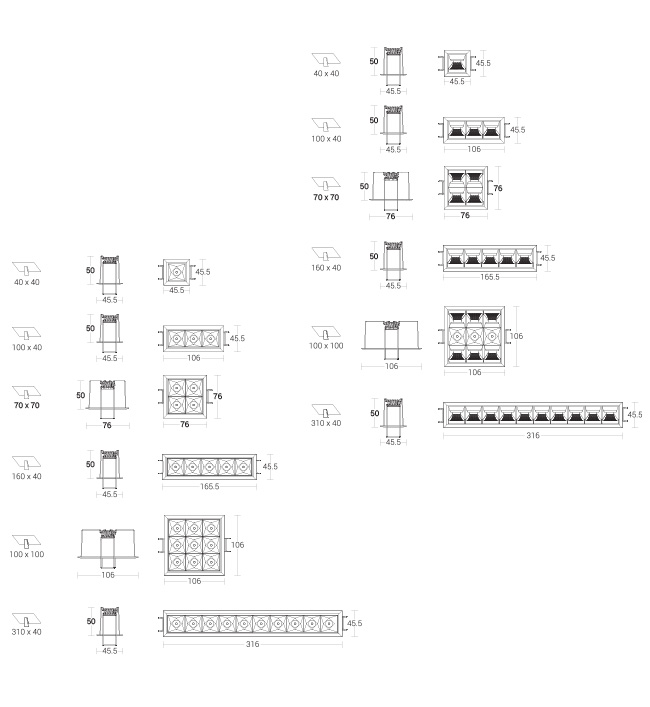

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
2337218W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 100 x 100mm23372-BA12D-NW.IES
23372-BA20D-NW.IES
23372-BA34D-NW.IES
23372-BA48D-NW.IES
23372-BA12D-NW.PDF
23372-BA20D-NW.PDF
23372-BA34D-NW.PDF
23372-BA48D-NW.PDF
233796W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 100 x 40mm23379-BA12D-NW.IES
23379-BA20D-NW.IES
23379-BA34D-NW.IES
23379-BA48D-NW.IES
23379-BA12D-NW.PDF
23379-BA20D-NW.PDF
23379-BA34D-NW.PDF
23379-BA48D-NW.PDF
2337112W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 160 x 40mm23371-BA--NW.IES
23371-BA--NW.IES
23371-BA--NW.IES
23371-BA--NW.IES
23371-BA--NW.IES
23371-BA--NW.PDF
23371-BA--NW.PDF
23371-BA--NW.PDF
23371-BA--NW.PDF
23371-BA--NW.PDF
2337324W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 310 x 40mm23373-BA12D-2700K.IES
23373-BA20D-2700K.IES
23373-BA34D-2700K.IES
23373-BA48D-2700K.IES
23373-BA60D-2700K.IES
23373-BA12D-2700K.PDF
23373-BA20D-2700K.PDF
23373-BA34D-2700K.PDF
23373-BA48D-2700K.PDF
23373-BA60D-2700K.PDF
233693W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 40 x 40mm23369-BA12D-NW.IES
23369-BA20D-NW.IES
23369-BA34D-NW.IES
23369-BA48D-NW.IES
23369-BA12D-NW.PDF
23369-BA20D-NW.PDF
23369-BA34D-NW.PDF
23369-BA48D-NW.PDF
2337010W LED 2700K,3000K,4000K,5700K BA:12°,20°,34°,48°,60°C.O.D : 70 x 70mm23370-BA34-WW.IES
23370-BA12D-NW.IES
23370-BA20D-NW.IES
23370-BA34D-NW.IES
23370-BA48D-NW.IES
23370-BA34-WW.PDF
23370-BA12D-NW.PDF
23370-BA20D-NW.PDF
23370-BA34D-NW.PDF
23370-BA48D-NW.PDF
2337718W LED 3000K,4000K,5700K BA:12°,20°,34°,48°,60° / WallwasherC.O.D : 100 x 100mm23377-BA--NW.IES
23377-BA--NW.PDF
233816W LED 3000K,4000K,5700KC.O.D : 100 x 40mm23381-BA--NW.IES
23381-BA--NW.PDF
2337612W LED 3000K,4000K,5700KC.O.D : 160 x 40mm23376-BA--NW.IES
23376-BA--NW.PDF
2337824W LED 2700K,3000K,4000K,5700KC.O.D : 310 x 40mm
233743W LED 3000K,4000K,5700KC.O.D : 40 x 40mm23374-BA--NW.IES
23374-BA--NW.PDF
2337510W LED 3000K,4000K,5700KC.O.D : 70 x 70mm23375-BA--NW.IES
23375-BA--NW.PDF
