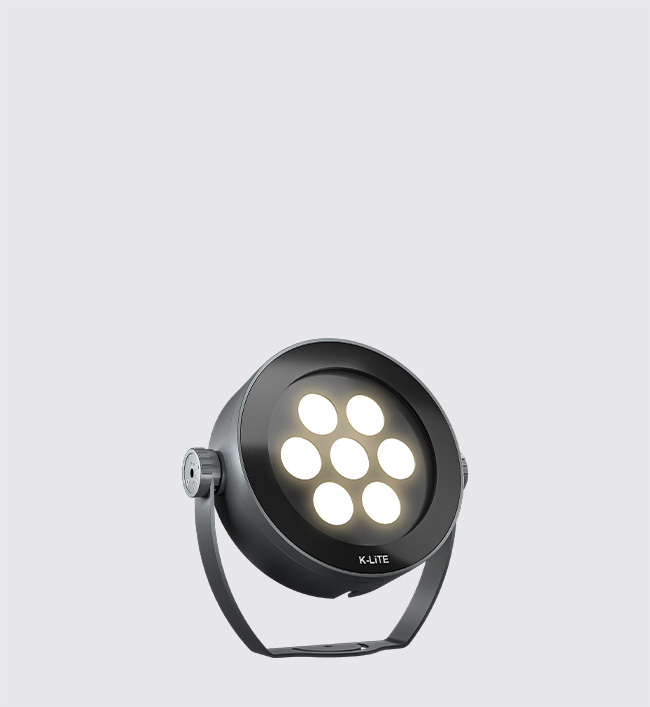

Navi Midi Spot
The Navi Midi - Flood Light is a powerful and efficient lighting fixture designed for a wide range of applications. It delivers a bright, focused light suitable for outdoor and large-area illumination. It provides robust protection against dust and water, ensuring reliable performance in various weather conditions. The Navi Midi - Flood Light is built to withstand mechanical impacts, enhancing its durability and longevity.

MaterialL
Body : Pressure die-cast aluminium & Extruded aluminium alloy (grade 6063) tube.
Bracket : Stainless Steel
Impact Protection : IK07
Ingress Protection : IP65
Diffuser : Clear Toughened Glass
Gasket : Clear Silicone
Mounting : Surface

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 6KV

Product configurations
Wattage : 90W
Beam Angle : 6°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area of application

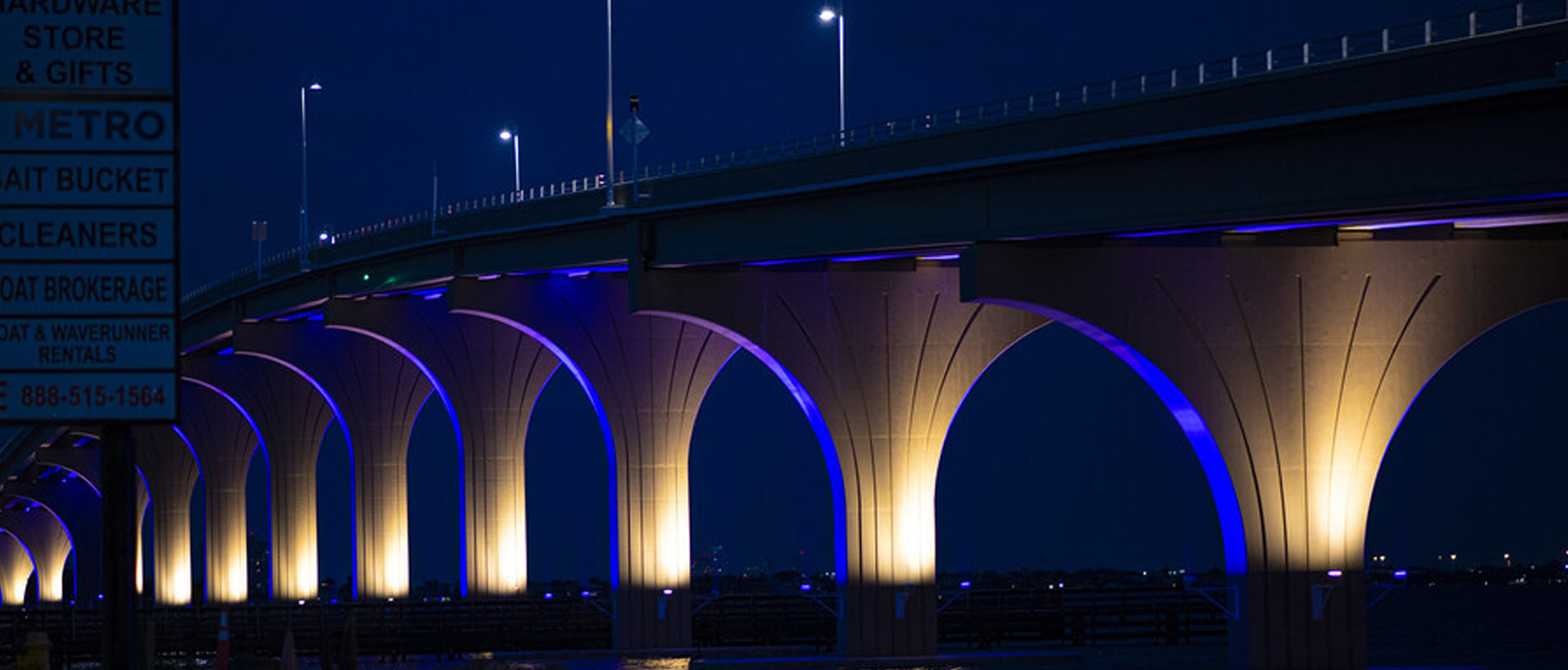

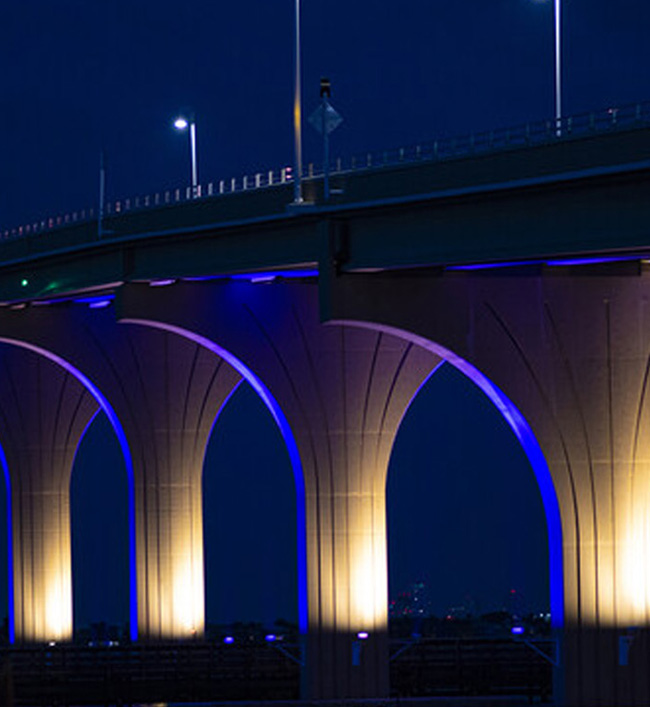

Architectural and building facade lighting, Pathways, Parks, Sculptures, Structures and Security lighting

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

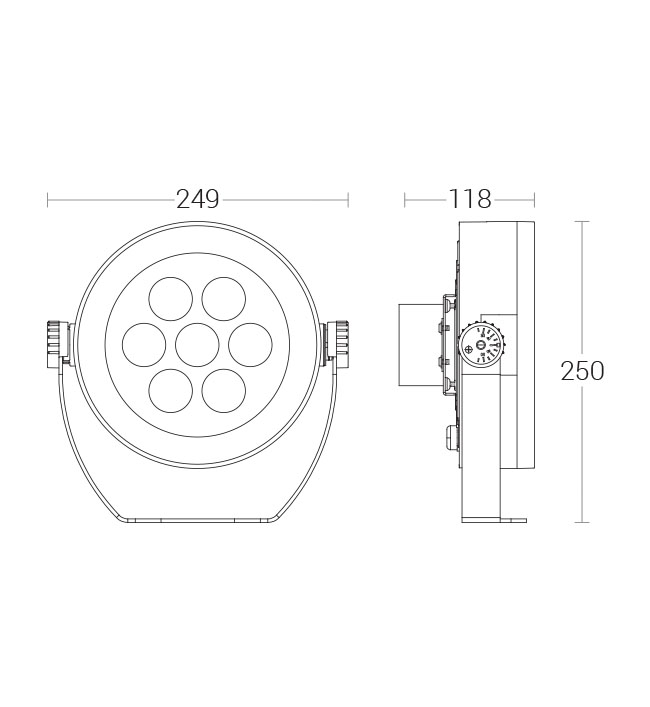

2446790W LED 2700K,3000K,4000K,5700K BA:6°, Clear Toughened Glass249 x 123 x 567mmM2
Detailed Foundation Drawing
24467.pdf
