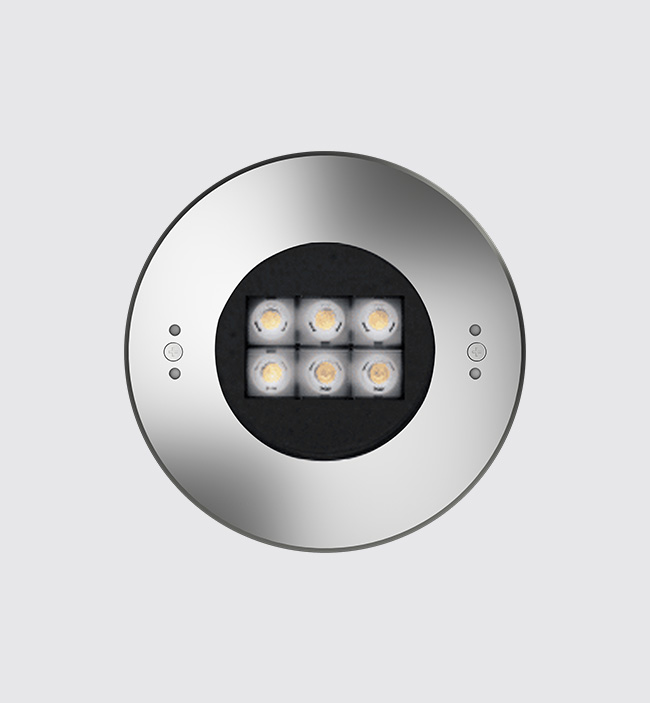

Underwater Luminaire – Recessed Pool LED Luminaires

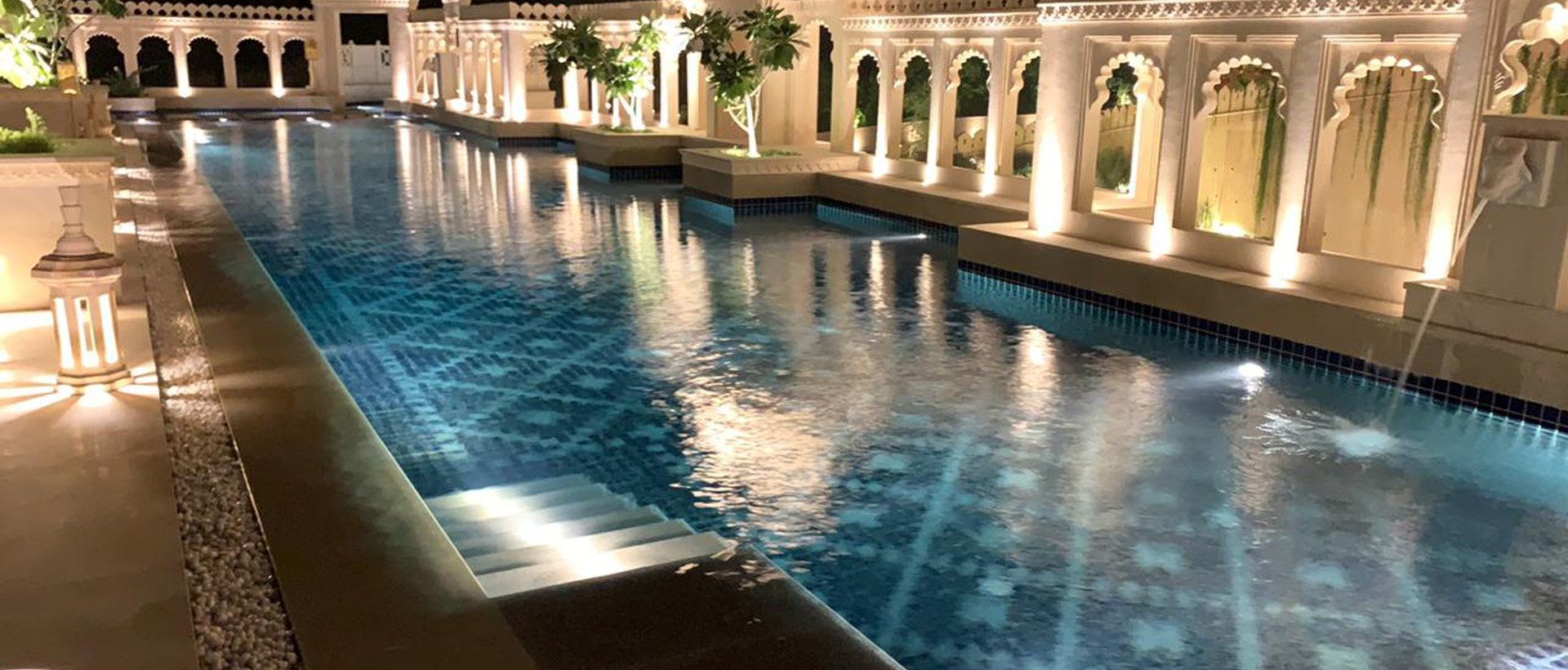

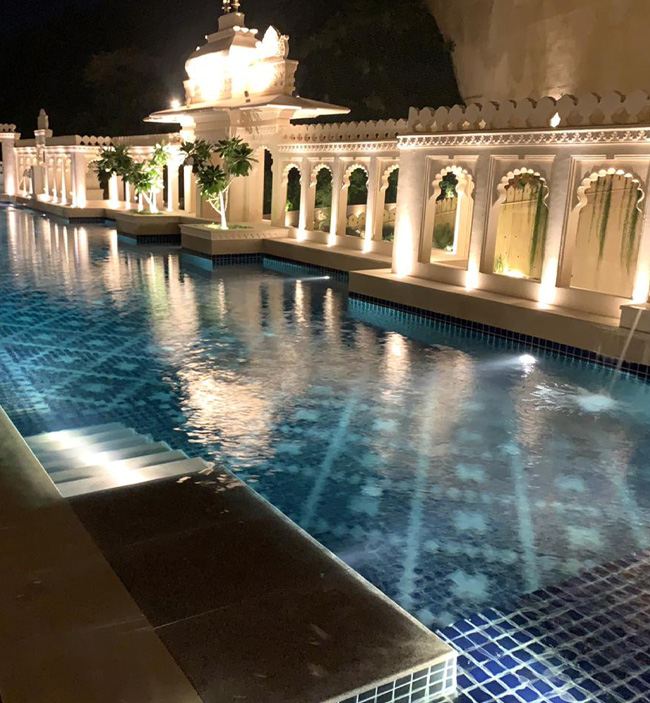

High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture.

Product Description
• Luminaire housing made of marine grade stainless steel #316.
• Silicone gasket. Stainless steel screws.
• Step tempered glass diffuser.
• Optical lens, efficiency =85%.
• Luminaire hard wired for single colour 2 x 1.0sqmm 3 metres water
resistant cable.
• Recommended installation depth upto 1 metre below the water surface
• Supplied with mounting sleeve for preparing recessed opening in ground.
• Temperature of water between -20°C ~ +40°C.

Product Benefits
• High luminous efficiency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Fountains, Swimming pools, Water features and other similar applications.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

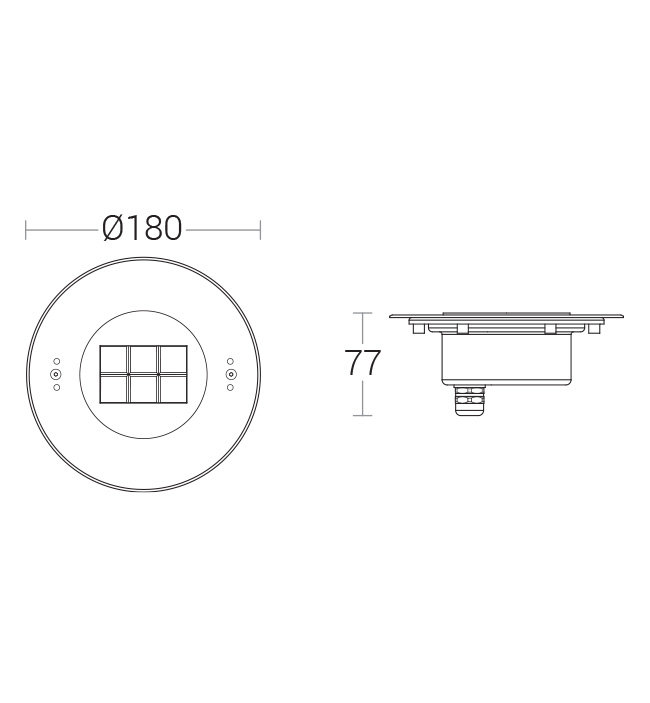

2281318W LED 3000K BA:20°, Step Tempered Glass T=8mmØ180 x 77mm22813.pdf
22813.txt
