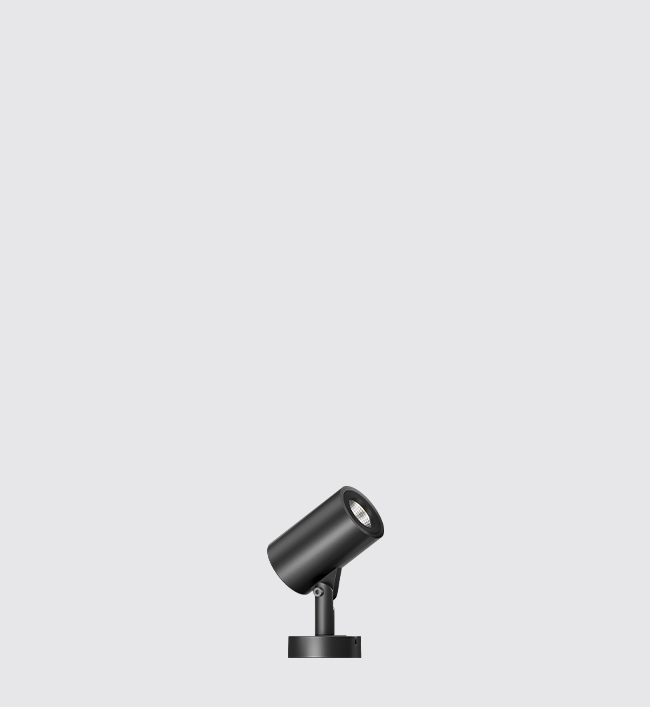

Nebula Mini - Tilt
LED compact spot light luminaires designed to provide directional light. The luminaires comes with a connecting cable and bracket for permanent installation on a wall, under a ceiling or on a column.

Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear toughened glass.
• Mounting die-cast aluminium bracket arrangement to facilitate easy installation at any desired location.
• Swivel range of 0°-90° & Rotational 360°.
• Luminaire supplied with 0.5 metre cable length.
• Silicone gasket.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24591-CCT (Colour Temperature)
• Available CCT : 2700K / 3000K / 4000K / 5700K

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Clear glass in the front with continuous rubber gasket to ensure adequate sealing against ingress of moisture, dust, insects etc.,
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Areas of Application

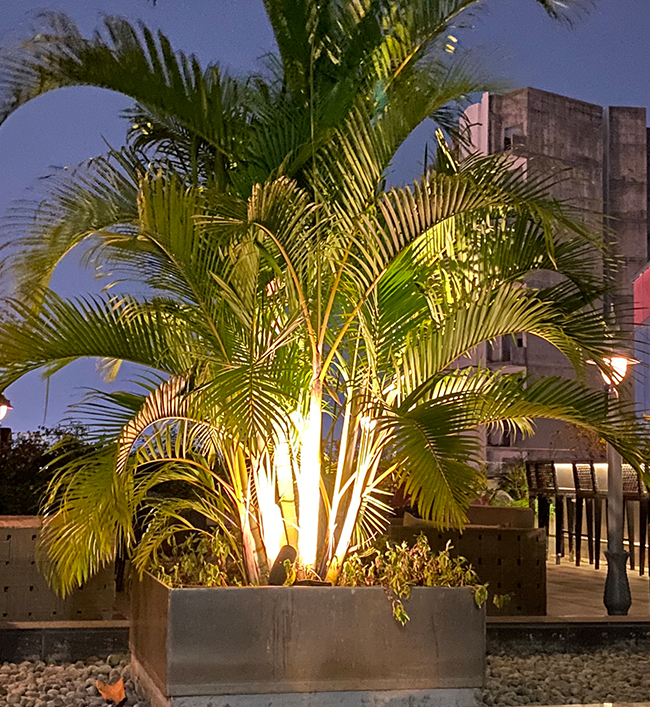

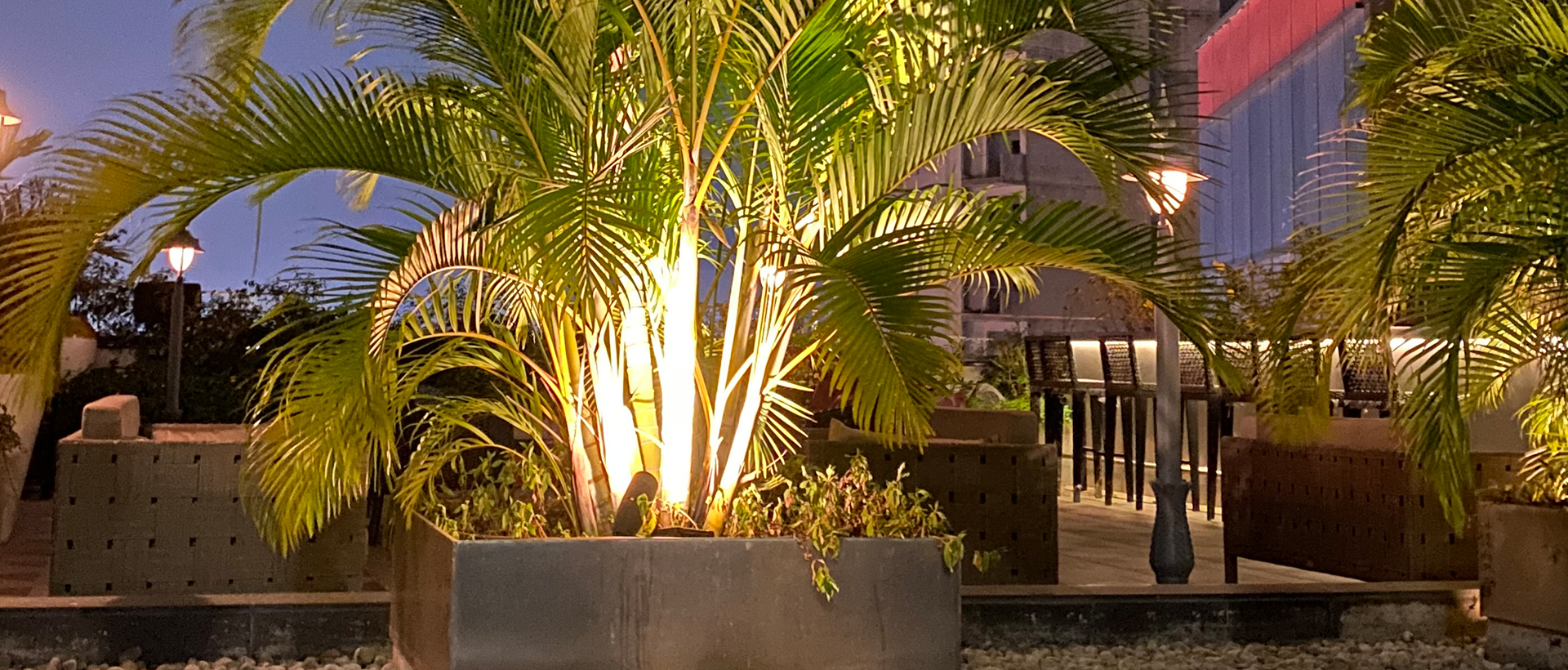

Pathways, Parks, Sculptures, Gardens, Structures and Landscape lighting

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

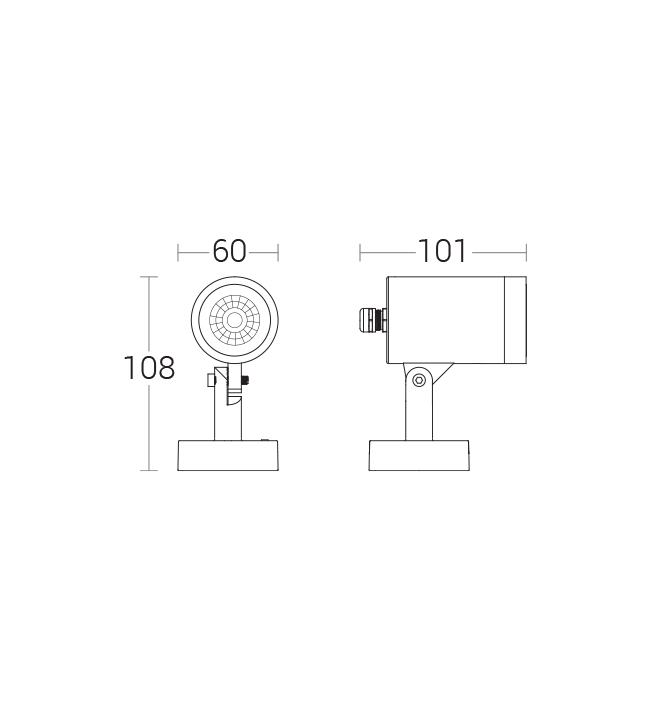

245916W LED 2700K,3000K,4000K,5700K BA:25°,40°,15°, Clear Toughened Glass101 x 60 x 108mmM54
Detailed Foundation Drawing
24591.pdf
