An elegant and efficient lantern featuring a translucent diffuser provides a unique, comfortable lighting solution with symmetrical light distribution. Its aesthetically designed, robust construction ensures long-lasting performance under all
weather conditions, maintaining its initial lighting quality throughout the lifetime of the installation.

Product Description

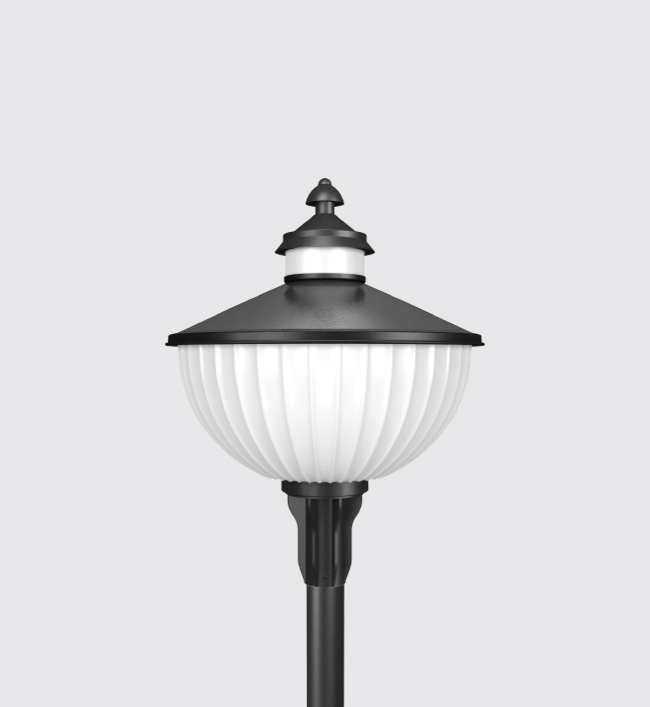

• The luminaire consists of a specially contoured spun aluminium top cover, complemented by a circular capping spacer and a ventilating knob.
• Lamp compartment encased in non-yellowing translucent UV stabilised perpex prism acrylic diffuser.
• Luminaire integrated with 27W LED.
• Rubber gasket.
• Turn type polycarbonate locking system for easy maintenance.
• Pressure die cast aluminium spigot base with aluminium alloy of low copper content for effective corrosion resistance.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• CRI ( Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24985-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• Elegant, Functionality
• Environmental Friendly
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

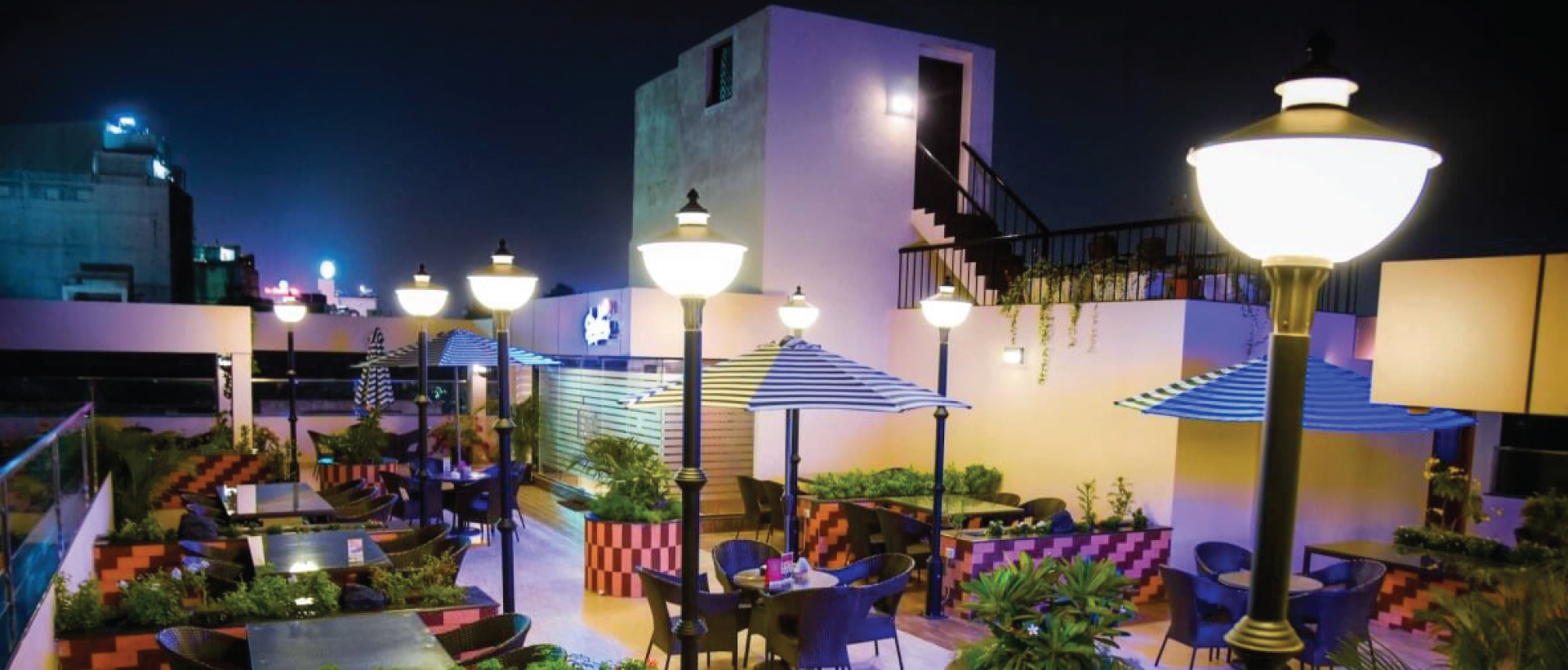

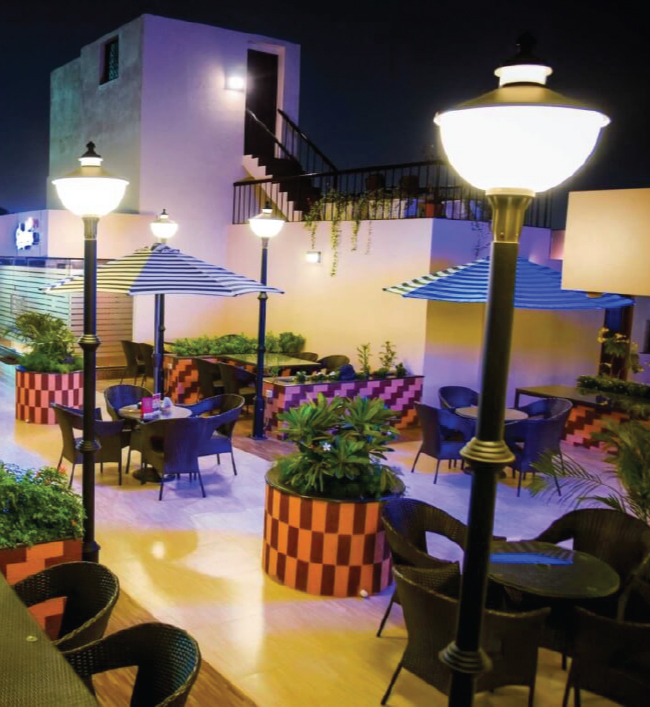

Illuminating parks, Gardens, Commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
