Cylin

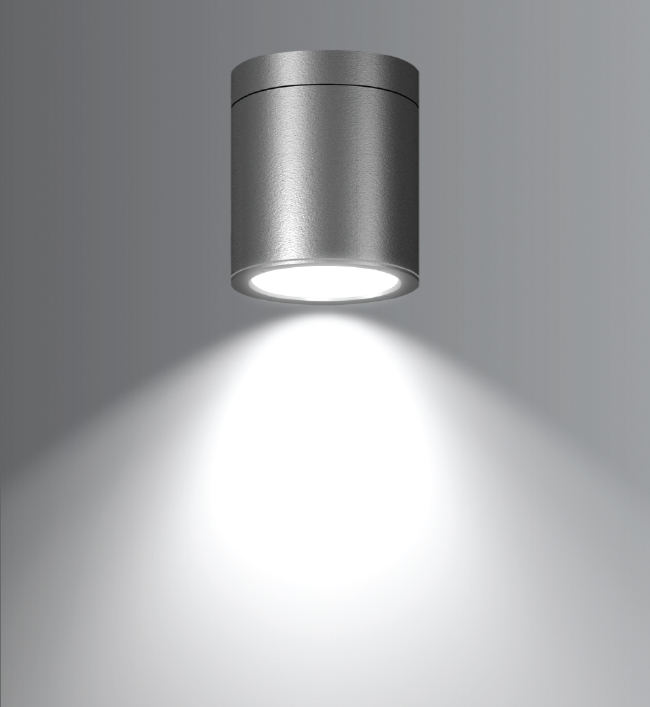

Compact and efficient ceiling mounted down lighters. High protection class & lumen output makes it versatile solution for both indoor & outdoor applications

Product Description
• Luminaire made of pressure die cast aluminium, extruded aluminium & non corrosive stainless steel fasteners.
• Polycarbonate optical lens.
• Silicone gasket.
• Cast aluminium plate for surface mounting onto the ceiling.
• Surface mounting on ceiling using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-7576-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Quick & simple installation.
• Corrosion resistant and maintenance free.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

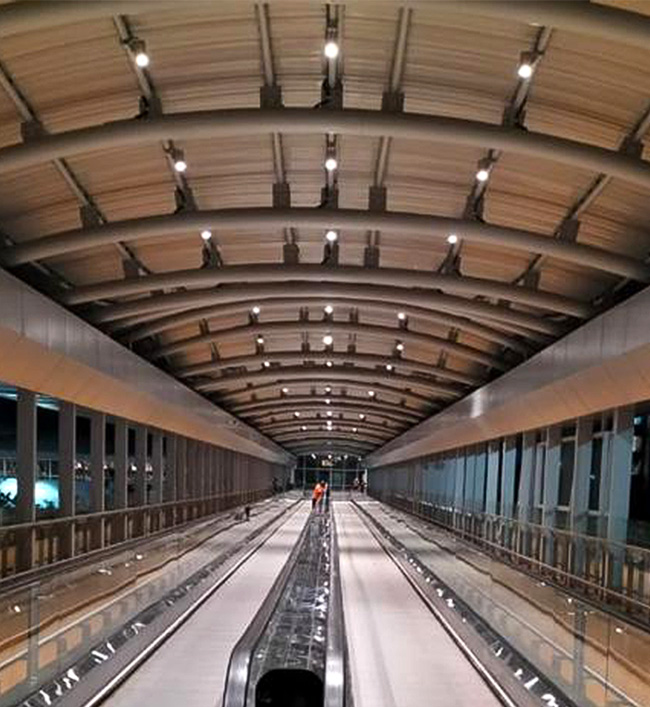

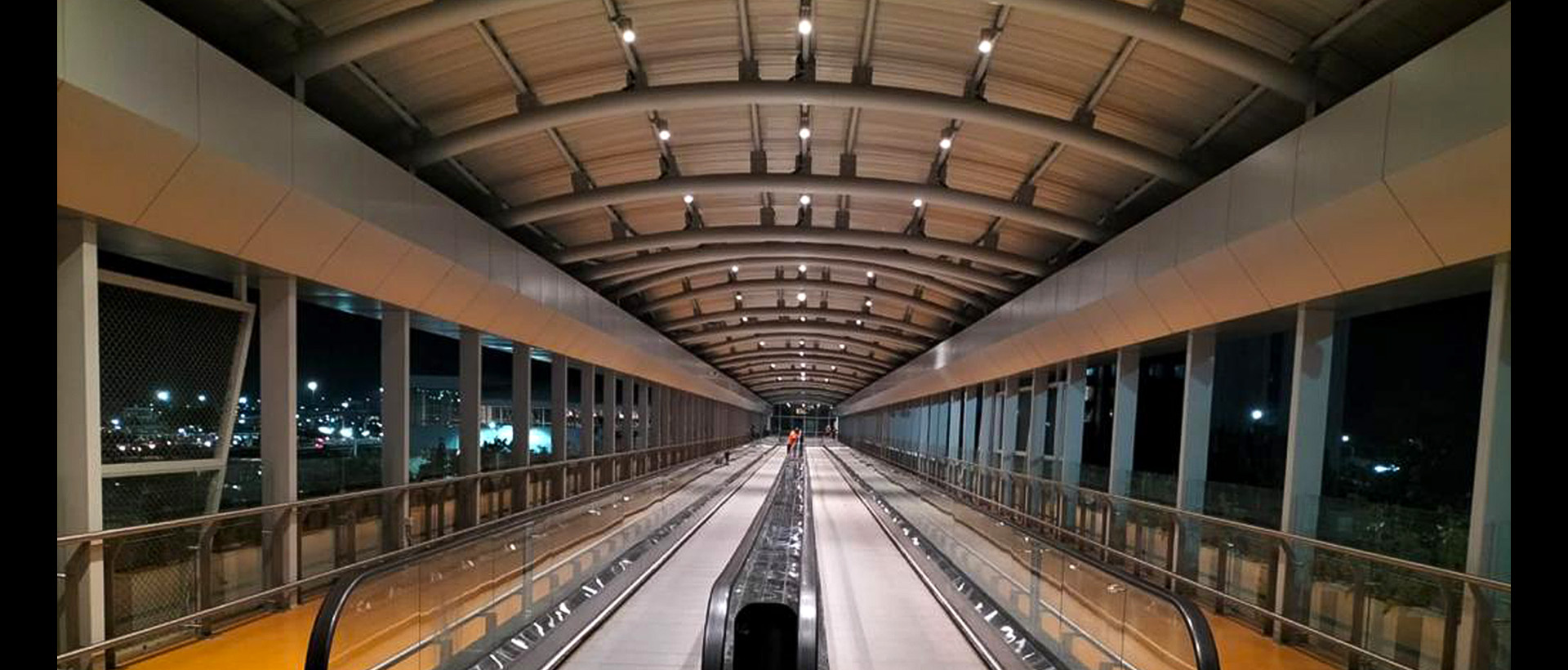

Lobbies & Foyers, Retail outlets, Corridors, Corporate, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

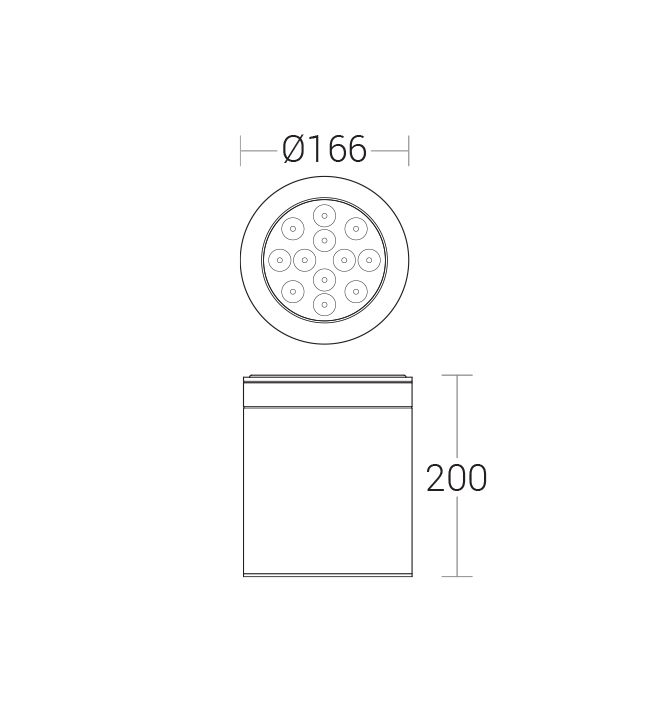

2757650W LED 2700K,3000K,4000K,5700K BA:10°,28°,45°, Polycarbonate Optical LensØ166 x 200mm27576-BA10°-WW.IES
27576-BA10°-NW.IES
27576-BA28°-WW.IES
27576-BA28°-NW.IES
27576-BA45°-WW.IES
27576-BA45°-NW.IES
27576-BA10°-WW.PDF
27576-BA10°-NW.PDF
27576-BA28°-WW.PDF
27576-BA28°-NW.PDF
27576-BA45°-WW.PDF
27576-BA45°-NW.PDF
27576.pdf
27576.txt
