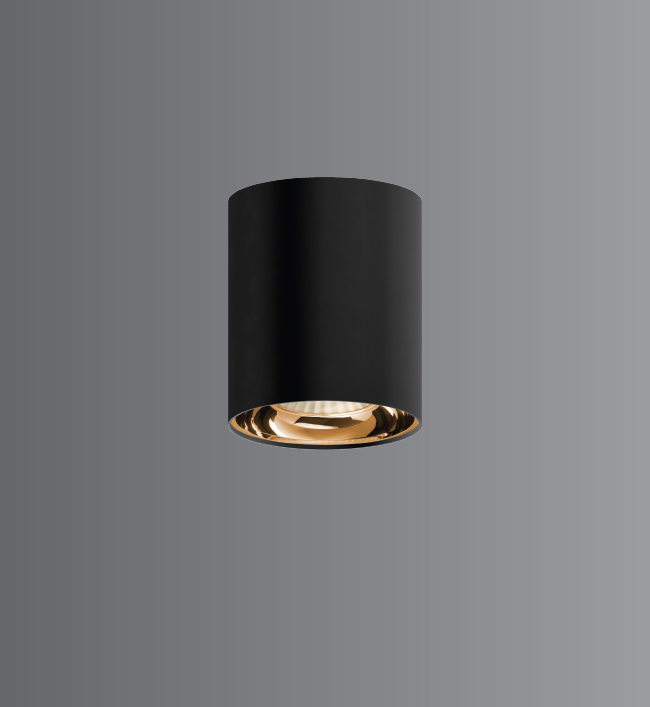

Astra Round
Astra surfaced mounted range of LED ceiling lights are a perfect fit for varied lighting applications. The die cast aluminium housing is ideal for better thermal management. High lumen output / Different wattage options make this luminaire versatile for indoor lighting solutions.

Product Description
• Luminaire made of die-cast aluminium for better thermal management.
• Die-cast aluminium inner ring with reflector for uniform light distribution.
• High PF constant current LED driver.
• Cable entries for through-wiring of mains supply cable
• Available in 30° beam angle
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Safety class II
• Ordering guide : KL-3675-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 6000K.

Product Benefits
• Excellent efficiency for high energy savings of up to 80% compared to CFL downlights.
• Replacement of existing CFL downlights with even better performance.
• Quick & simple installation.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

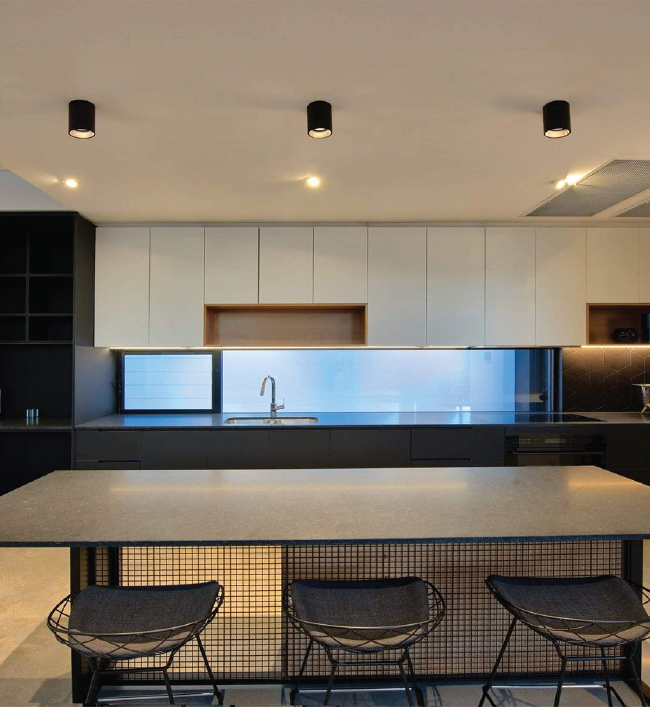

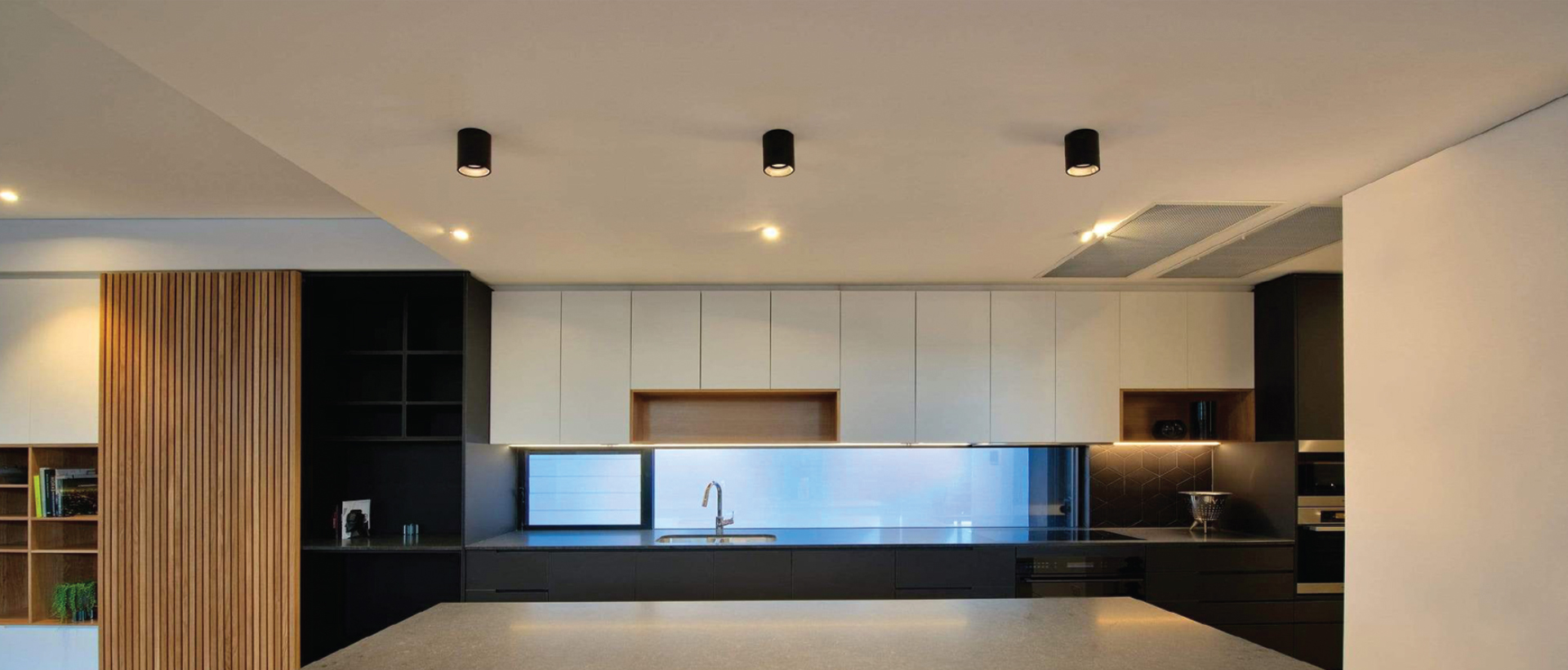

Area of Application
Lobbies & Foyers, Retail Sector, Corridors, Corporate, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers, etc.

Available Finish
Epoxy polyester powder coated Black & Rose Gold.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
2368530W LED 2700K,3000K,4000K,5700K BA:30°, Clear PolycarbonateØ115 x 125mm23685-BA30°-WW.IES
23685-BA30°-CW.IES
23685-BA30°-NW.IES
23685-BA30°-WW.PDF
23685-BA30°-CW.PDF
23685-BA30°-NW.PDF
23685.pdf
236755W LED 2700K,3000K,4000K,6500K BA:30°, Clear PolycarbonateØ55 x 75mm23675-BA30°-WW.IES
23675-BA30°-CW.IES
23675-BA30°-NW.IES
23675-BA30°-WW.PDF
23675-BA30°-CW.PDF
23675-BA30°-NW.PDF
23675.pdf
2368312W LED 2700K,3000K,4000K,6500K BA:30°, Clear PolycarbonateØ73 x 100mm23683-BA30°-WW.IES
23683-BA30°-CW.IES
23683-BA30°-NW.IES
23683-BA30°-WW.PDF
23683-BA30°-CW.PDF
23683-BA30°-NW.PDF
23683.pdf
2368420W LED 2700K,3000K,4000K,6500K BA:30°, Clear PolycarbonateØ94 x 116mm23684-BA30°-WW.IES
23684-BA30°-CW.IES
23684-BA30°-WW.PDF
23684-BA30°-CW.PDF
23684.pdf
