Wall Pelican Mini

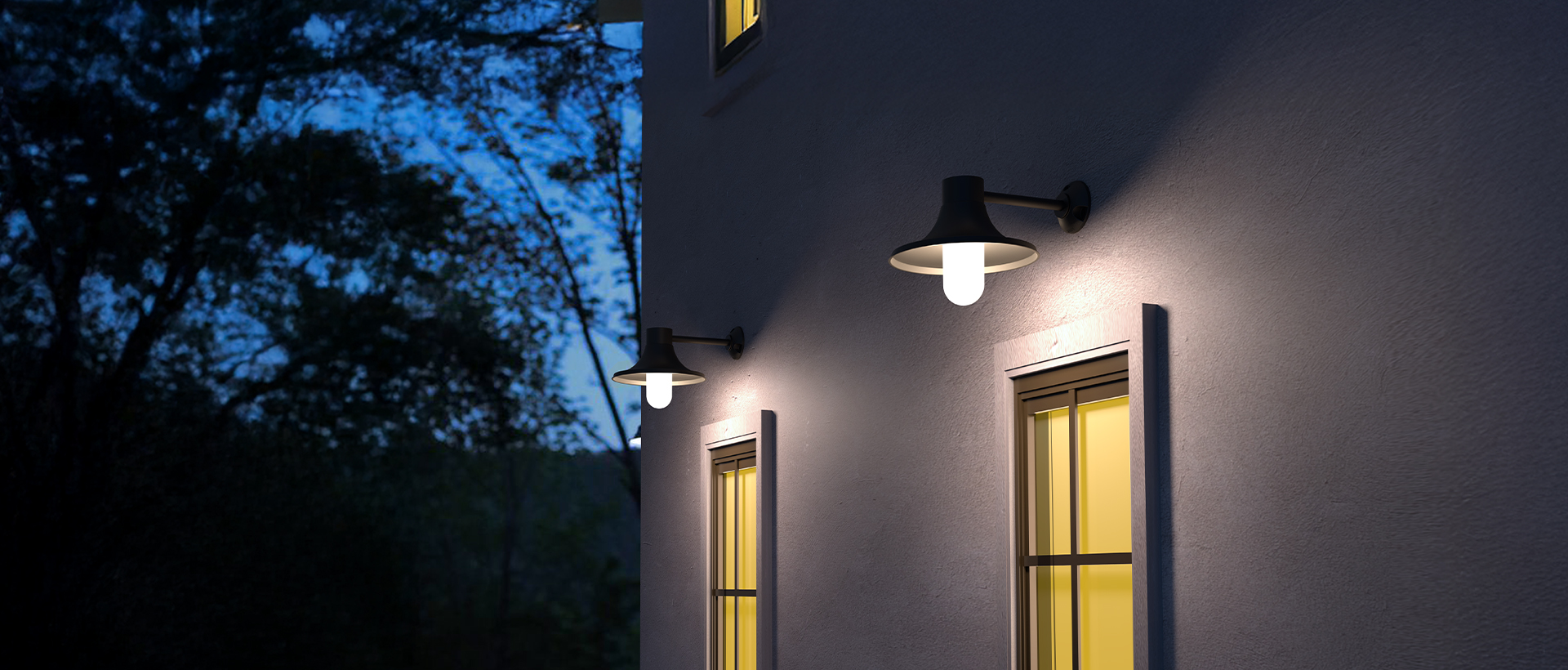

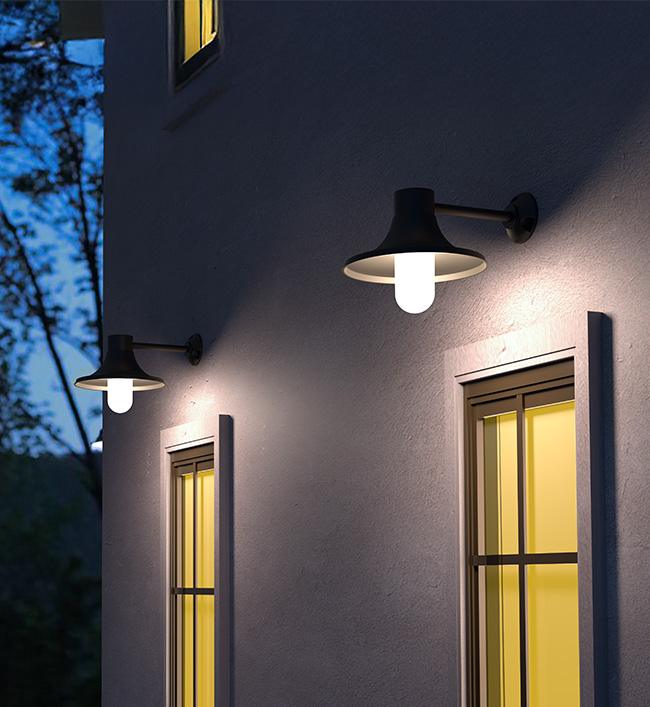

Our surface-mounted range of wall lights is an ideal choice for a variety of outdoor lighting applications. Designed to illuminate the area in front of it, these luminaires are also perfect for creating light accents on vertical surfaces. These luminaires offer enhanced, long-lasting protection against the ingress of dust, moisture, and insects.

Product Description

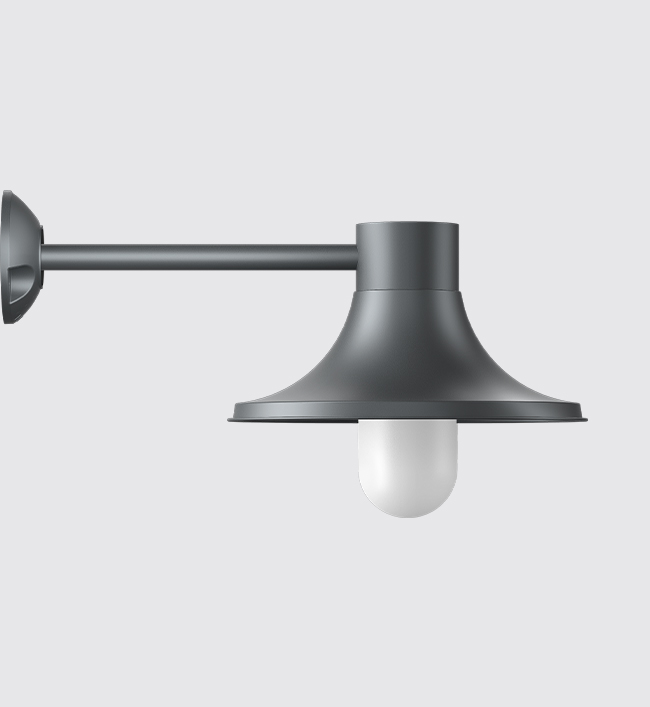

• Luminaire made of spun aluminium and extruded aluminium (grade 6063).
• Non yellowing UV stabilized translucent polycarbonate diffuser.
• Pressure die-cast aluminium mounting base for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Prewired with E27 holder and suitable for operating on 240V, 50Hz single phase ac supply.

Product Benefits
• Corrosion resistant and Maintenance free.
• Quick & simple installation.
• Functionally versatile, strong and stable.

Area Of Application
Residential, Building facade, Commercial centres, Passages, Pathways.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

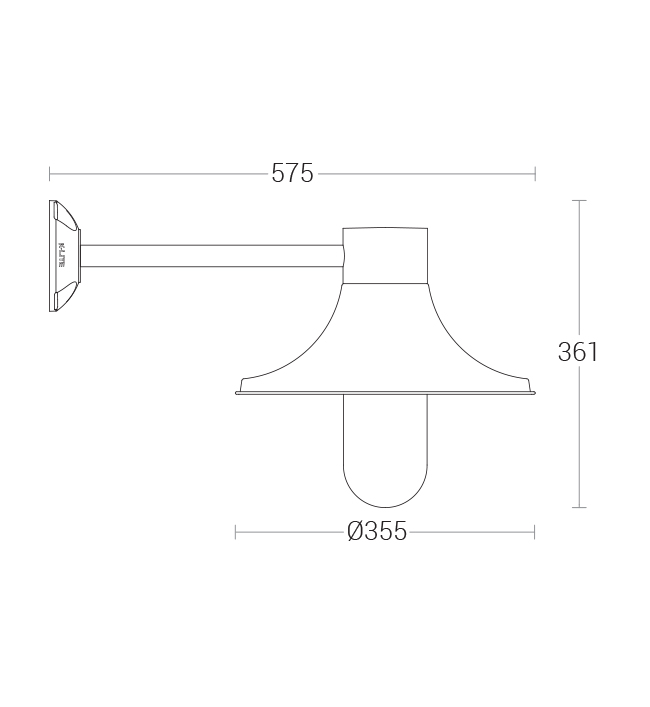

24463 E27, Translucent Polycarbonate575 x Ø355 x 361mmM57
